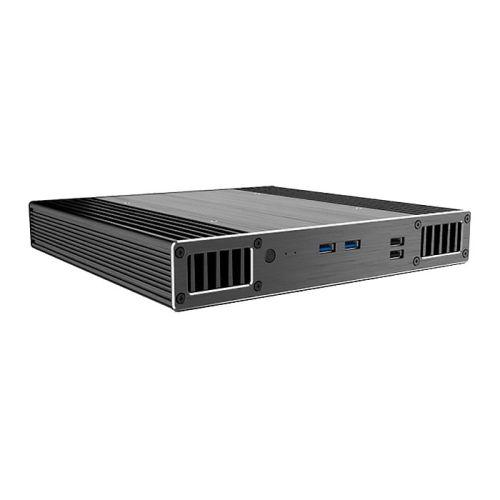

Akasa Plato TN Slim Fanless Case for 11th Gen Intel NUC boards, VESA Mounting, 2.5″ SATA HDD/SSD




  • Form Factor: NUC
  • #Hide#Small Form Factor: Yes (SFF)
  • Power Supply Wattage: No PSU
  • Motherboard Support: UCFF 4″””” X 4″”””

    Intel NUC Board (kit):
    NUC11TNKi3 / NUC11TNHi3 / NUC11TNBi3

    NUC11TNKi5 / NUC11TNHi5 / NUC11TNBi5 / NUC11TNKv5 / NUC11TNHv5 / NUC11TNBv5

    NUC11TNKi7 / NUC11TNHi7 / NUC11TNBi7 / NUC11TNKv7 / NUC11TNHv7 / NUC11TNBv7

  • #Hide#Window(s): No
  • Connectors / Controls: Front I/O:
    2 x USB 3.2 port x2
    2 x USB 2.0 port x2
    Power button

    Rear I/O:
    DC-In port
    2 x HDMI
    2 x USB Type-A
    2 x USB Type-C
    1 x LAN
    1 x Serial port

  • Drive Bays: 2.5″””” SSD/HDD (up to 9.5mm high)
  • Cooling System: Fanless
  • Colour: Black
  • Material: Aluminium
  • Weight/Dimensions: 247 x 240 x 38.5mm (W x D x H)
  • Additional Features: See Overview
  • Package Weight: 2.8000 kg
  • Warranty: 1 Year

Out of stock

SKU: A-NUC65-M1B Category:


Slim fanless case for 11th Gen Intel® NUC board (Tiger Canyon)

Low profile fanless case for 11th Gen Intel® NUC board (Tiger Canyon)
  • Aluminium fanless CPU cooling design
  • Stylish front panel diamond effect
  • Provides one rear serial port
  • Supports VESA mounting
  • Accommodates 2.5" SATA HDD/SSD
  • Front dual USB 3.2 Gen 1 and dual USB 2.0 ports
Perfect Features for Commercial Applications
Designed for Tiger Canyon models with quad 4K displays or one 8K display outputs, making it ideal for digital signage applications or where multiple displays are required.
Supports Intel's commercial board with vPro® Technology support for array of applications including robotic assembly lines
Supports up to Four 4K Displays
The Plato TN case provides connector openings for connectivity for up to four 4K displays. Perfect for an array of business applications such as security and digital signage.

Additional information

Weight 2.8 kg
