AOC E2270SWDN 21.5inch Full HD Monitor, Widescreen, VGA, DVI, 5ms, VESA, Tilt


  • Screen Size (in): 21.5
  • Max Resolution: 1920×1080
  • Refresh Rate: 60Hz
  • Response Time: 5ms
  • Display Port: No
  • HDMI: No
  • Curved Screen: No

Out of stock

SKU: MOAOC-E2270SWDN Category:

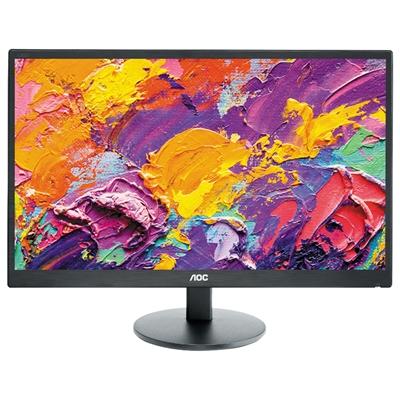

AOC E2270SWDN 21.5″ LED Widescreen VGA DVI 5ms Monitor
This LED-backlit monitor delivers a solid performance for standard office and home applications. Coming in a classy black texturised finish, the tiltable widescreen model is equipped with a fast-reacting TN panel, boasting a 5 ms pixel response time for crisp, blur-free images. Intelligent programs such as Screen+ and i-Menu enhance the user experience and help to save energy. The eco-friendly Series 70 fulfils demanding sustainability certificates such as Energy Star 6.0 and EPEAT Silver and is prepared for both VESA wall mount and Kensington security devices

AOC?s monitors use LED backlights with white LEDs to illuminate the display panel (TN, IPS or VA). Compared to old backlights using CCFL, LED backlights have much lower energy consumption and more dimming control over the brightness, and contribute to the thinness of the display.

Vesa Mount
AOC?s Ergo Base stands bring versatility, sturdiness and ease of use in one package. But do you still want to use your wall mount or multi-monitor setup using desk mounts? VESA mounts bring you the uppermost flexibility. Upside-down, in pivot mode, on top of each other, attach your monitor wherever you want using 3rd party mounts and stands thanks to the VESA mount option.

Kensington Lock
Kensington Lock is an anti-theft system, comprising a metal-reinforced hole in the body of the respective device, to use with a metal cable secured with a key/lock system. Kensington locks enable you to secure your AOC monitor during a LAN event, an organisation, or wherever you carry it.

Full HD Resolution
Want to watch a Blu-ray movie in full quality, enjoy games in high resolution or read crisp text in office applications? Thanks to its Full HD resolution of 1920 x 1080 pixels, this monitor lets you do just that. Whatever you are viewing, with Full HD it will be displayed in rich detail without requiring a high-end graphics card or consuming a lot of your system?s resources.

Key Features:

Monitor Line

    • Value

Monitor Size

    • 21.5″

Visible Screen Size

    • 54.6 cm

Screen Format

    • 16:9


    • 200 (typ) cd/m (typ)

Contrast Ratio Dynamic

    • 20.000.000:1 (DCR)

Contrast Ratio Typical

    • 700:1

Pixel / Dot / Pitch

    • 0.248 (H) x 0.248 (V)

Display Area

    • 477.5 (H) x 268.5 (V)

Viewing Angle

    • 90 / 65 (CR 10)

Response Time

    • 5 ms

Scanning Frequency

    • H:30 ~ 83 KHz, V:50 ~ 67 Hz

Pixel Frequency

    • 108 MHz

Maximum Resolution

    • 1920 x 1080@60 Hz

Recommend Resolution

    • 1920 x 1080@60 Hz


    • 16.7 M

HDCP compatible

    • No

Signal Input

    • Analogue Input: D-SubYes


    • Digital Input: DVI-D Yes


    • Digital Input: HDMI-


    • Composite CVBS Input-


    • Component CVBS Input-


    • S-Video Input-


    • Display Port Input-


    • D-Sub 15 pinYes


    • DVI-D 24-pinYes


    • HDMI-


    • Display Port Input-

Power Source

    • 100 ~ 240 VAC, 50 / 60 Hz

Power Consumption

    • On: 14.8W


    • Standby: 0.29W


    • Off: 0.24W

Other Features

    • Plug and play


    • Yes


    • Kensington Lock


    • Yes


    • i-Menu


    • Yes


    • e-Saver


    • Yes


    • Vesa Wallmount


    • 100×100


    • -5 +15 Tilt



    • Energystar 6,TCO no,EPEAT Silver,TUV-GS,TUV-Bauart,CE,FCC,EAC,RoHS compliant


    • VESA 100×100

Height Adjustment



Dimensions (WxHxD)

    • 503,37×47,98×311,1 mm


    • 2.7 kg wo/packaging


    • 3.45 kg w/packaging


    3 Years
