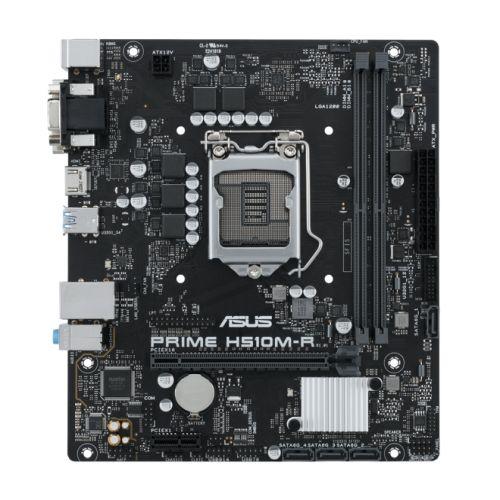

Asus PRIME H510M-R SI, Intel H510, 1200, Micro ATX, 2 DIMM, DVI, HDMI, 2 USB 3.2 *WHITE BOX*
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: Intel 1200 – Rocket Lake
- Chipset: Intel H510
- #Hide#DDR Type: DDR4
- CPU Support: “LGA1200 for 11th Gen & 10th Gen, Pentium Gold and Celeron CPUs”
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: 3200(OC)/2933/2800/2666/2400/2133 MHz
- Maximum Memory: 64GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types
- Graphics Ports: 1 x VGA
1 x DVI
1 x HDMI
- PCI/PCI Express: 1 x PCIe 4.0/3.0 x16
- Storage: 4 x SATA III
- Wireless: –
- LAN: GB LAN
- Audio: 7.1 Channel(HD)
- USB Ports Supported: “4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)”
- Back Panel I/O Ports: 1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x D-Sub
1 x DVI-D
1 x HDMI
2 x USB 3.2 Gen1
2 x USB 2.0
1 x Realtek 1Gb Ethernet
3 x Audio jacks
- Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 4-pin +12V
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x Clear CMOS
1 x COM Port
1 x Front Audio
1 x Chassis Intrusion Header
1 x LPT Header
- .: 1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel
- Additional Features: See Overview
- Package Type: White Box
- Package Weight: 0.7500 kg
- Warranty: 3 Years
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
Out of stock
Intel H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, HDMI, DVI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Realtek 1 Gb Ethernet
- Intel LGA 1200 socket: Ready for 11th & 10th Gen Intel Core processors
- 5X Protection III: Multiple hardware safeguards for all-round protection
- Ultrafast connectivity: PCIe 4.0, Realtek 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 11th and 10th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H510M-R provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H510 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.
All-around Energy Efficiency
With the Energy Processing Una (EPU), you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode
Precise Digital Power Control
The DIG, voltage-regulator module (VRM) delivers seal-Dose control over voltage droop, automatically switching frequency and power-efficiency settings It also allows you to fine-tune your CPU for ultimate stability and performance
*Specifications vary by models.
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
- Search Function: Quickly and easily find the option or setting you need.
- ASUS User Profile: Port configuration settings between different BIOS versions or share them with friends.
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
- Intuitive Graphical Fan Control: Fine-tune individual fan settings simply by dragging a curve with the mouse.
- EZ XMP: Improve DRAM performance with one click.
Cool to the Core
Prime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Multiple Temperature Sources
Each header can dynamically reference the thermal sensor. UEFI BIOS allows you to map the temperature of CPU and motherboard.
4-Pin PWM Fan
Each onboard FAN header supports PWM mode.
Build on a Solid Foundation
Prime H510 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS H510 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
ASUS H510 motherboards are designed specifically for 11th Generation Intel Core CPUs and offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
USB 3.2 Gen 1 Type-A
Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.
Small Details Make a Big Difference
Prime H510 series adds the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look.
Combined onboard features deliver elevated audio. mIntelligent design and premium hardware create audio quality unlike anything you've ever experienced.
Audio Shielding: Separates analog/digital signal domains, significantly reducing multi-lateral interference.
Separate Layer for Left and Right Tracks: Ensures minimal crosstalk between audio paths.
Armoury Crate is a new software utility designed to give you centralized control of supported products, from a single intuitive interface. Armoury Crate provides control of settings for ASUS products, including keyboard and mouse preferences. This software even features dedicated product registration and highlight to help you stay in touch with the ASUS community.
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.
