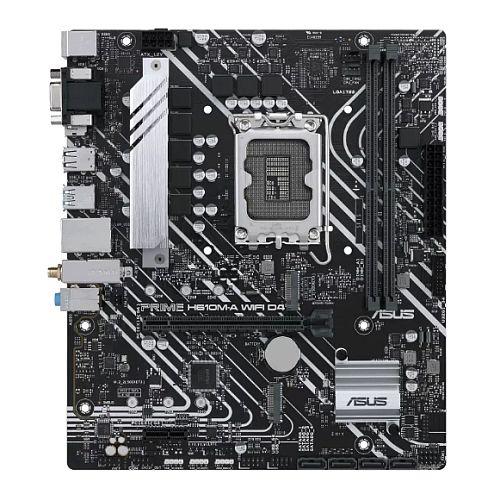

ASUS PRIME H610M-A WIFI D4, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, Wi-Fi, PCIe4, 2x M.2

ASUS PRIME H610M-A WIFI D4, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, Wi-Fi, PCIe4, 2x M.2

£121.99

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1700
  • Chipset: Intel H610
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 3200MHz
  • Maximum Memory: 64GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types

  • Graphics Ports: 1 x VGA
    1 x HDMI
    1 x DisplayPort
  • PCI/PCI Express: 1 x PCIe 4.0 x16 slot
    1 x PCIe 3.0 x1 slot
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280) – PCIe
    1 x M.2 (2242/2260/2280) – PCIe
  • Wireless: Wi-Fi 5
    Wi-Fi 5 (802.11 a/b/g/n/ac)
    Supports 2.4/5GHz frequency band
    Bluetooth v5.0
  • LAN: GB LAN
  • Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
  • USB Ports Supported: “2 x USB 3.2 Gen2 Type-A (at back)
    2 x USB 3.2 Gen1 Type-A (at mid-board)
    7 x USB 2.0 (4 at back, 3 at mid-board)”
  • Back Panel I/O Ports: 2 x USB 3.2 Gen2 (Type-A)
    4 x USB 2.0 (Type-A)
    1 x DisplayPort
    1 x HDMI
    1 x D-Sub
    1 x Wi-Fi Module
    1 x Intel 1Gb Ethernet
    3 x Audio jacks
    1 x PS/2 Keyboard
    1 x PS/2 Mouse
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    2 x 4-pin Chassis Fan
    1 x 24-pin Main
    1 x 8-pin +12V
    2 x M.2 (Key M)
    4 x SATA 6Gb/s
    1 x USB 3.2 Gen1
    2 x USB 2.0
    3 x Addressable Gen2
    2 x AURA RGB
    1 x Clear CMOS
    1 x Front Audio
  • .: 1 x COM Port
    1 x S/PDIF Out
    1 x Speaker
    1 x SPI TPM (14-1pin)
    1 x 10-1 pin System Panel
  • Accessories: 2 x SATA 6Gb/s cables
    1 x ASUS Wi-Fi moving antennas
    1 x I/O Shield
    1 x M.2 SSD screw package
    1 x Support DVD
    1 x User guide
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 1.0500 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN
  • #Hide#Wi-Fi: Yes (Wi-Fi)

Out of stock

SKU: 90MB1C80-M0EAY1 Category:
ASUS

Description

Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Intel® 1 Gb Ethernet, WIFI 5, DisplayPort, HDMI®, D-Sub, USB 3.2 Gen 2 ports, SATA 6 Gbps, Addressable Gen 2 headers, and Arua Sync

  • Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
  • Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
  • Ultrafast connectivity: 32Gbps M.2 slot, Intel® 1 Gb Ethernet, WIFI 5 and USB 3.2 Gen 2 ports
  • Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Intelligent Control
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Flexible cooling controls

Prime 600 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert 2+ software. Auto-Tuning mode intelligently configures all parameters with a single click.



Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.



UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.



Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.



Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.



Cooling

Prime H610 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.



VRM Heatsink and Thermal Pad
VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chokes for better cooling performance.
Cooler by Design
Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.



Storage
Dual M.2 slots (up to 32 Gbps)

Prime H610M-A WIFI D4 offers two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.

Connectivity

PCIe® 4.0

Prime H610 motherboards are designed specifically for 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.



USB 3.2 Gen 2 ports

Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A ports with fast USB 3.2 Gen 2 for transmission speeds of up to 10 Gbps.



Wi-Fi 5

PRIME H610M-A WIFI D4 has 802.11ac Wi-Fi with 1×1 2.4/5GHz antennas for up to 433.3Mbps* transfer speeds to ensure that every connected user experiences the best wireless and online speeds!



Intel® 1 Gb Ethernet

Intel® Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

Personalization

Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.



Addressable Gen 2 Headers
Three addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and news to help you stay in touch with the ASUS community.

DIY Friendly

Q-LED Core

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.



Fortified PCIe slot prevents damage
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that’s anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.



Additional information

Weight 1.05 kg
Brand

Filter by M.2 Slots

Yes
Socket

1700
DDR Type

Chipset

Intel H610

Brand

ASUS
