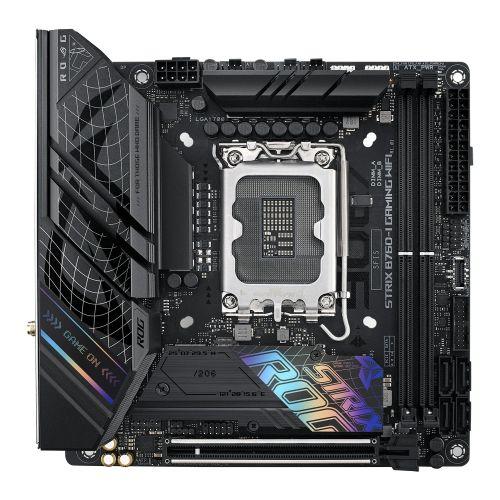

Asus ROG STRIX B760-I GAMING WIFI, Intel B760, 1700, Mini ITX, 2 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 2x M.2

£230.99

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Mini ITX
  • Socket: Intel 1700
  • Chipset: Intel B760
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR5 (Dual Channel)
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 7600(OC)
  • Maximum Memory: 64GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types

  • Graphics Ports: 1 x HDMI
    1 x DisplayPort
  • PCI/PCI Express: 1 x PCIe 5.0 x16
  • Storage: 4 x SATA III
    1 x M.2 (2260/2280) – PCIe
    1 x M.2 (2242/2260/2280) – PCIe
  • RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
  • Wireless: Wi-Fi 6E
    2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5/6GHz frequency band
    Bluetooth v5.3
  • LAN: 2.5GB LAN
  • Audio: ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
  • USB Ports Supported: “1 x USB 3.2 Gen2x2 Type-C (at back)
    1 x USB 3.2 Gen1 Type-C (at back)
    3 x USB 3.2 Gen1 Type-A (at back)
    2 x USB 3.2 Gen1 (at mid-board)
    5 x USB 2.0 (3 at back, 2 at mid-board)
    1 x Front Panel Type-C USB 3.2 Gen2 Header”
  • Back Panel I/O Ports: “1 x USB 3.2 Gen2x2 Type-C
    4 x USB 3.2 Gen1 (3 Type-A, 1 Type-C)
    3 x USB 2.0
    1 x HDMI
    1 x DisplayPort
    1 x Wi-Fi Module
    1 x Intel 2.5Gb Ethernet
    5 x Audio jacks”
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    1 x 4-pin Chasis Fan
    1 x 4-pin AIO Pump
    1 x 24-pin Main
    1 x 8-pin +12V
    2 x M.2 (Key M)
    4 x SATA 6Gb/s
    1 x USB 3.2 Gen2 Type-C
    1 x USB 3.2 Gen1
    1 x USB 2.0
    1 x Addressable Gen2
    1 x Aura RGB
  • .: 1 x Clear CMOS
    1 x Front Panel Audio
    1 x S/PDIF Out
    1 x Speaker
    1 x 10-1 pin System Panel
    1 x Thermal Sensor
  • Accessories: 2 x SATA 6Gb/s cables
    1 x ROG USB2.0 splitter cable
    1 x Panel cable
    1 x Thermal pad for M.2
    1 x ASUS Wi-Fi moving antennas
    1 x Cable ties package
    1 x M.2 Rubber Package
    2 x Screw packages for M.2 SSD
    1 x M.2 bracket
    1 x ROG key chain
  • .: 1 x ROG STRIX stickers
    1 x ROG STRIX thank you card
    1 x User manual
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 1.4000 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
  • #Hide#Wi-Fi: Yes (Wi-Fi)
  • #Hide#RGB Lighting: Out of the box RGB lighting
