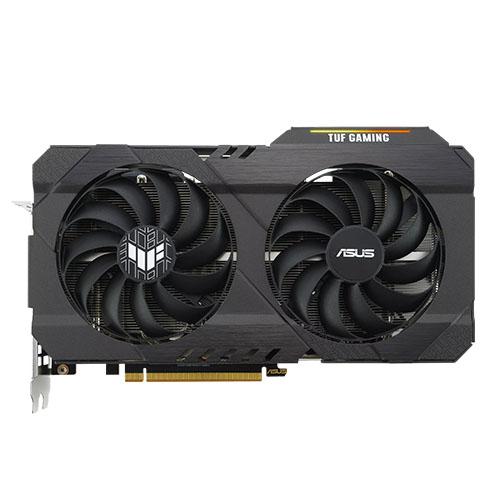

Asus TUF GAMING RX6500 XT OC, 4GB DDR6, PCIe4, HDMI, DP, 2825MHz Clock, RGB, Overclocked

Asus TUF GAMING RX6500 XT OC, 4GB DDR6, PCIe4, HDMI, DP, 2825MHz Clock, RGB, Overclocked

£144.99

Description

Specification

  • Chipset Manufacturer: AMD
  • Interface: PCI Express 4.0
  • Graphics Chipset: AMD RX 6500 XT
  • Memory Size: 4GB
  • Memory Type: DDR6
  • Memory Interface: 64-bit
  • Core Clock: OC mode:
    up to 2825 MHz(Boost Clock)
    up to 2705 MHz(Game Clock)

    Gaming mode:
    up to 2825 MHz(Boost Clock)
    up to 2685MHz(Game Clock)

  • Memory Clock: 18 Gbps
  • CUDA Cores / Stream Processors: 1024 Stream Processors
  • Outputs: 1 x HDMI 2.1
    1 x DisplayPort 1.4a
  • HDCP Support: Yes
  • Resolution: Digital Max Resolution: 7680 x 4320
  • DirectX Support: DirectX 12 Ultimate
  • Multi-GPU Support: CrossFireX
  • Max Display Support: 2
  • Cooling: Axial-Tech Fan Design
    0dB Technology
    Dual Ball Fan Bearings
  • PSU Requirements: 500W or greater recommended
  • Connectors Required: 1 x 6-pin PCIe power required
  • Software: ASUS GPU Tweak II & Drivers
    Radeon software
  • Additional Features: See Overview
  • Dimensions: 250 x 147 x 54 mm
  • Slot Size: 2.7 Slot
  • Accessories: 1 x Speedsetup Manual
  • Package Type: Retail
  • #Hide#Lighting Effects: Yes
  • #Hide#HDMI: Yes (HDMI)
  • #Hide#DisplayPort: Yes (DisplayPort)
  • Package Weight: 1.7000 kg
  • Warranty: 3 Years

Out of stock

SKU: 90YV0HA0-M0NA00 Category:
ASUS

Description



ASUS TUF Gaming Radeon RX 6500 XT OC Edition 4GB GDDR6 is a supreme stalwart of cooling and durability


  • Axial-tech fan design features a smaller fan hub that facilitates longer blades and a slimmed down barrier ring that provides better airflow through the cooling array.
  • Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
  • A 2.7-slot design expands cooling surface area to make the most of the powerful Axial-tech fans.
  • An all-aluminum shroud and metal backplate enhance durability.
  • A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.
  • A vented backplate prevents hot air from recirculating through the cooling array.





Built TUF

The TUF Gaming Radeon RX 6500 XT is a tenacious beast with a tough metal exterior, efficient cooling, and components that offer enhanced endurance. An all-metal shroud houses two powerful axial-tech fans with dual ball fan bearings. Underneath, a thick heatsink keeps thermals under tight control and TUF components, selected for maximum durability and performance, keep the card ahead of the pack. You asked for a mean machine… this one is ready for action.





Cooling

Axial-Tech Fan Design
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a slimmed down barrier ring to provide better airflow through the cooling array.

Quiet Cunning
Fans will only start spinning when the GPU temperature hits 57 Celsius and shut off when temps drop below 50 Celsius, helping to reduce noise when the system is idling or under light load.

2.7-Slot Design
The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card's large, 2.7-slot footprint.





TUF Components

Robust military-grade capacitors were selected for the card's power design. They and other components are soldered to the PCB using our Auto-Extreme automated manufacturing process. Precise joints and the elimination of human error ensures each graphics card meets our rigorous specifications. To ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial.





Design

Metal Coat
A machined all-aluminum shroud creates a robust outer shell and a no-nonsense industrial design and grayscale colorway fits into any build with ease.

Armoured Underside
The underside of the card reveals further improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. And a conveniently placed Dual Bios switch allows customization of the card's default performance profile without software.

Functional Front
The front-side RGB element can be customized to display a range of aesthetic and functional effects, and also synced with other ASUS components to enable uniform lighting. To fulfill the power demands of the Radeon RX 6500 XT, a 6-pin power connector is present, along with onboard LEDs that light up if PSU PCIe power connectors are not plugged in correctly.





Software

GPU Tweak II
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

Radeon Software
The latest Radeon Software unleashes the full potential of your GPU with day-0 drivers optimized for new game releases and a highly customizable gaming experience.





Additional information

Weight 1.7 kg
Brand

ASUS
MPN

90YV0HA0-M0NA00

Brand

ASUS
