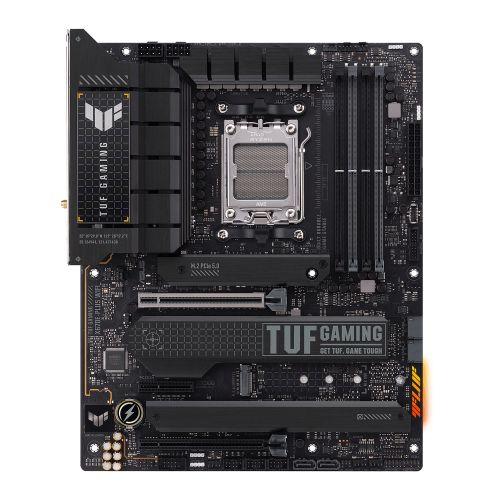

Asus TUF GAMING X670E-PLUS, AMD X670, AM5, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, RGB, 4x M.2

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD AM5
• Chipset: AMD X670
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 6400+(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types

• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 5.0 x16
  1 x PCIe 4.0 x16 (supports x4 mode)
  1 x PCIe 4.0 x4
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) – PCIe
  1 x M.2 (2242/2260/2280) – PCIe
  1 x M.2 (2242/2260/2280/22110) – PCIe
  1 x M.2 (2242/2260/2280) – PCIe
• RAID: AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
• Wireless: –
• LAN: 2.5GB LAN
• Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: “1 x USB 3.2 Gen2x2 Type-C (at back)
  1 x USB 3.2 Gen2 Type-C (at back)
  3 x USB 3.2 Gen2 Type-A (at back)
  7 x USB 3.2 Gen1 Type-A (5 at back, 2 at mid-board)
  6 x USB 2.0 (at mid-board)
  1 x Front USB 3.2 Gen2 Type-C connector”
• Back Panel I/O Ports: “1 x USB 3.2 Gen2x2 Type-C
  4 x USB 3.2 Gen2 (3 Type-A, 1 Type-C)
  5 x USB 3.2 Gen1 Type-A
  1 x DisplayPort
  1 x HDMI
  1 x Realtek 2.5Gb Ethernet
  5 x Audio jacks
  1 x BIOS FlashBack button”
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  4 x 4-pin Chassis Fan
  1 x W_PUMP+
  1 x 24-pin Main
  2 x 8-pin +12V
  4 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen2 Type-C
  1 x USB 3.2 Gen1
  3 x USB 2.0
• .: 3 x Addressable Gen2
  1 x AURA RGB
  1 x Clear CMOS
  1 x COM Port
  1 x Front Panel Audio
  1 x 20-3 pin System Panel
  1 x Thermal Sensor
  1 x Thunderbolt
• Accessories: 2 x SATA 6Gb/s cables
  2 x Rubber packages for M.2
  2 x Screw packages for M.2 SSD
  1 x TUF certification card
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 2.2000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#RGB Lighting: Out of the box RGB lighting
