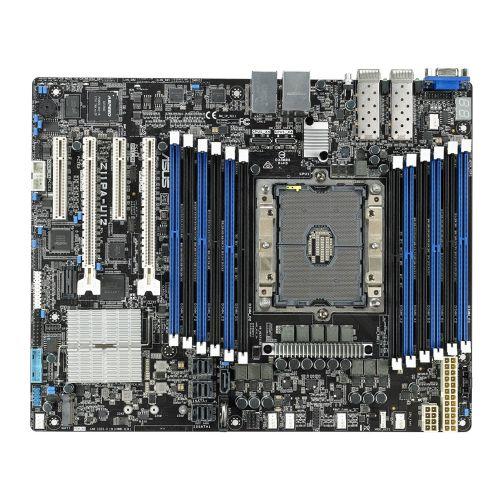

Asus Z11PA-U12/10G-2S Server MB, Intel C622, S 3647, ATX, Scalable Xeon Platform, 12 DDR4, Dual 10G SFP, Dual OCuLink, 13 x SATA




  • Motherboard Type: Server / Workstation
  • Form Factor: ATX
  • Socket: Intel 3647
  • Chipset: Intel C622
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR4 (Six Channel)
  • RAM Slots: 12 x DIMM
  • RAM Speeds: 2666/2400 MHz

    Note on capacity:
    Maximum up to 384GB RDIMM
    Maximum up to 768GB LRDIMM
    Maximum up to 1536GB LR-DIMM 3DS

  • Maximum Memory: 1536GB
  • Graphics: Aspeed AST2500 with 64MB VRAM
  • Graphics Ports: 1 x VGA
  • Multi-GPU Support:
  • PCI/PCI Express: “Total Slot : 4

    Location 1 : PCI-E x8 (Gen3 X4 Link)
    Location 2 : PCI-E x16 (Gen3 X16 Link)
    Location 3 : PCI-E x8 (Gen3 X8 Link)
    Location 4 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 3 is occupied”

  • Storage: 13 x SATA III
    1 x M.2 (22-42/60/80 – PCIe
  • RAID: “RAID 0, 1, 5, 10”
  • Wireless:
  • LAN: “10GB LAN, Dual GB LAN & Mgmt LAN Port”
  • USB Ports Supported: “4 x USB 3.1 Gen1 (2 at back, 4 at mid-board)
    2 x USB 2.0 (at mid-board)”
  • Back Panel I/O Ports: 2 x USB 3.0 ports
    1 x VGA port
    2 x RJ-45 GbE LAN ports
    1 x RJ-45 Mgmt LAN port

    Rear Switch/LED:
    1 x Power switch
    1 x Message LED
    1 x HDD LED
    1 x Location LED
    1 x BMC LED
    1 x P5V LED

  • Internal I/O Connectors: 1 x TPM
    1 x PSU Power
    1 x USB 3.0
    1 x USB 2.0
    6 x Fan
    1 x Serial Port
    1 x SMBus
    1 x Chassis Intruder
    2 x Front LAN LED
    1 x M.2 – NGFF Type: 2280/2260/2242
    1 x VROC Key
    1 x Q-Code/Port 80 LED
  • Accessories: I/O Shield
    1 x SATA 6Gb/s cable
    1 x Supporting DVD
    1 x LGA3647 carrier
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: To be confirmed
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 3 x LAN
  • #Hide#Max LAN Speed: 10GB LAN

Out of stock

SKU: 90SB06A0-M0UAY1 Category:


Scalable server motherboard with high-speed networking

  • Intel® Xeon® Scalable processor platform
  • Unmatched memory expandability with 12 DIMM slots
  • High-speed networking with dual 10 Gigabit SFP+
  • Dual OCuLink for efficient connections to NVMe devices
  • Support for up to 13 6Gb/s SATA storage devices
  • Comprehensive IT infrastructure management solution with ASMB9-iKVM and ASUS Control Center (ACC)
  • Increased energy efficiency with ASUS ProCool power connectors

Unmatched memory expandability with 12 DIMM slots
ASUS Z11PA-U12/10G-2S features 12 DIMM slots — the most on any compact ATX motherboard — giving it unmatched memory expandability. Together with support for dual double-deck GPUs, Z11PA-U12/10G-2S makes an ideal platform for deep learning application development and education.


High-speed networking with dual 10 Gigabit SFP+
With dual 10 Gigabit SFP+ modules, ASUS Z11PA-U12/10G-2S delivers blazingly fast networking speeds for both intranet and internet connections. Additionally, Intel® Virtual RAID on CPU (VROC) works with dual OCuLink connectors to enable both RAID 0 configurations for increased data transfer speeds and RAID 1 for instant data redundancy.


Dual OCuLink for efficient connections to NVMe devices
ASUS Z11PA-U12/10G-2S features dual onboard OCuLink to provide efficient port-to-port connection with most OCuLink-supported NVMe devices, eliminating the need for PCIe transaction cards.


Connect up to 13 6Gb/s SATA storage devices
ASUS Z11PA-U12/10G-2S comes with three mini-SAS HD connectors that support up to twelve SATA ports each for high-speed 6Gb/s connectivity with external devices and cleaner cable routing. Additionally, a 7-pin SATA port provides flexibility to connect an optical drive or extra SATA device.


Comprehensive IT infrastructure management solution
The latest ASMB9-iKVM module enables remote BIOS updates, fan control, standalone KVM with HTML 5 interface, video recording and BSOD capture. With out-of-band management, ASMB9-iKVM provides around-the-clock remote monitoring and diagnostics — even if the server operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers. ASUS Control Center (ACC) is a centralised and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables easier server management with functions such as BIOS updating without restarting the system, remote monitoring of multiple systems via mobile devices, and one-click software updates and dispatching. Learn more about ACC


Increased energy efficiency with ASUS ProCool Power Connectors
ASUS Z11PA-U12/10G-2S comes with ASUS ProCool Power Connectors, which decrease power connector temperature for reduced power loss and increased cost savings.
