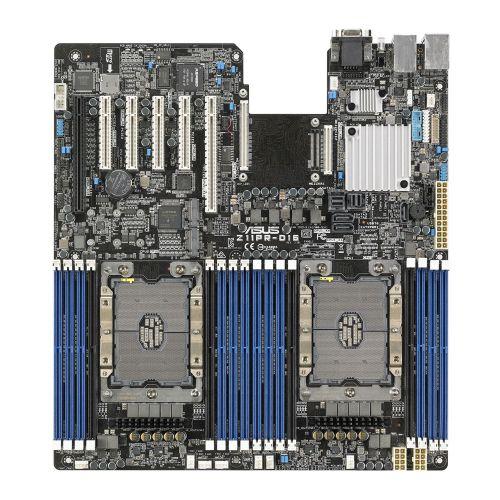

Asus Z11PR-D16, Rack-optimised Workstation, Intel C621, S 3647, EEB, Dual Scalable Xeon, 16 DDR4 (2TB Capacity), 11 SATA, Dual LAN, M.2

£655.99

Description

Specification

  • Motherboard Type: Server / Workstation
  • Form Factor: EEB
  • Socket: Intel 3647
  • Chipset: Intel C621
  • #Hide#DDR Type: DDR4
  • CPU Support: 2 x sockets

    Click here for CPU support

  • RAM Technology: DDR4 (Six Channel)
  • RAM Slots: 16 x DIMM
  • RAM Speeds: 2666/2400 RDIMM
    2666/2400 LRDIMM
    2666/2400 LR-DIMM 3DS

    Note on capacity:
    Maximum up to 512GB RDIMM
    Maximum up to 1024GB LRDIMM
    Maximum up to 2048GB LR-DIMM 3DS

  • Maximum Memory: 2048GB
  • Graphics: Aspeed AST2500 with 64MB VRAM
  • Graphics Ports: 1 x VGA
  • Multi-GPU Support:
  • PCI/PCI Express: Location 1: PCIe x16 (Gen3 X16 Link)
    Location 2: PCIe x8 (Gen3 X8 Link)
    Location 3: PCIe x8 (Gen3 X8 Link)
    Location 4: PCIe x8 (Gen3 X8 Link)
    Location 5: PCIe x8 (Gen3 X8 Link)
    Location 6: PCIe x16 (Gen3 X16 Link)
  • Storage: 11 x SATA III
    2 x M.2 (2280/2260/2242) – SATA & PCIe
  • RAID: “RAID 0, 1, 5, 10”
  • Wireless:
  • LAN: Dual GB LAN & Mgmt LAN Port
  • USB Ports Supported: “4 x USB 3.1 Gen1 (2 at back, 2 at mid-board)
    4 x USB 2.0 (at mid-board)”
  • Back Panel I/O Ports: 2 x USB 3.0
    1 x VGA
    2 x RJ-45 GbE LAN
    1 x RJ-45 Mgmt LAN

    Rear Switch/LED:
    1 x Power switch
    1 x Q-Code/Port 80 LED
    1 x Message LED
    1 x HDD LED
    1 x Location LED

  • Internal I/O Connectors: “1 x TPM
    1 x PSU Power
    1 x USB 3.0 pin
    2 x USB 2.0 pin
    9 x Fan
    1 x SMBus
    2 x Chassis Intruder
    2 x Front LAN LED
    1 x Serial Port
    1 x VROC Key
    1 x Micro SD Card Slot
    2 x M.2, NGFF Type: 2280/2260/2242″
  • Accessories: I/O Shield
    1 x SATA 6Gb/s cable
    1 x Supporting DVD
    2 x LGA3647 carrier
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 2.6000 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 2 x LAN
  • #Hide#Max LAN Speed: GB LAN

Out of stock

SKU: 90SB0670-M0UAY0 Category:

Description

Scalable server motherboard with industry-leading 2TB memory capacity


  • Industry-leading 2TB memory capacity
  • Dual M.2 SSD slots
  • Intel® Xeon® Scalable Platform design
  • Comprehensive IT infrastructure management solution – ASUS Control Center (ACC) and ASMB9-iKVM
  • Rack-optimised thermal performance

Industry-leading memory capability
With 16 RAM slots that support up to 2TB of fast, DDR4-2666MHz 3DS ECC RDIMMs or LRDIMMs, the Z11PR-D16 server motherboard delivers industry-leading memory capability for your business.



Dual M.2 SSD slots
Z11PR-D16 features dual M.2 SSD slots which support two transmission interfaces: SATA and PCI-E Gen3 x4. Both interfaces could be set in RAID mode. In particular, in the mode of PCI-E RAID, it supports Intel® VROC technology. The disk array system with Dual M.2 can be used as the main system disk, and also can be used as memory caching to enhance the data access speed.



Intel® Xeon® Scalable Platform design
Z11PR-D16 is built on the Intel® Xeon® Scalable Platform to deliver higher per-core performance and six memory channels that provide 50% more memory bandwidth and capacity for 1.65X faster average system-level performance compared to previous-generation processors. The Intel® Xeon® Scalable platform also delivers better virtualisation performance, enabling 4.2X more virtual machines (VMs) per system.



Comprehensive IT infrastructure management solution
ASUS Control Centre (ACC) is a centralised and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables easier server management with functions such as BIOS updating without restarting the system, remote monitoring of multiple systems via mobile devices, and one-click software updates and dispatching. Learn more about ACC.

The latest ASMB9-iKVM module enables remote BIOS updates, fans control, standalone KVM/Java utilities, video recording and BSOD capture. With out-of-band management, ASMB9-iKVM provides around-the-clock remote monitoring and diagnostics — even if the server operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers.



Rack-optimised thermal performance
With the CPU and memory configured in a front parallel design that enables efficient airflow for excellent thermal performance, Z11PR-D16 is optimised for rack placement.



Flexibility to grow with your business
Z11PR-D16 comes with a wide range of ports to provide a flexible and cost-effective computing environment with the ability to grow together with your business. Z11PR-D16 features:

2 x mini SAS HD connectors
3 x 7-pin SATA ports
11 x SATA 6Gb/s storage device support (maximum)
1 x VGA
2 x USB 3.0
2 x 1GbE LAN
1 x Mgmt LAN
1 x Q-Code/port 80 LED



Additional information

Weight 2.6 kg
Brand

Asus

MPN

90SB0670-M0UAY0
