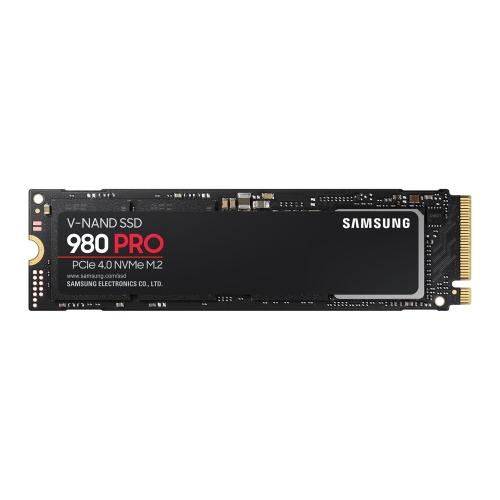

Samsung 500GB 980 PRO M.2 NVMe SSD, M.2 2280, PCIe, V-NAND, R/W 6900/5000 MB/s, 800K/1000K IOPS

Description

Specification

• Series: Samsung 980 PRO
• #Hide#Capacity Range: 480 – 512 GB
• Capacity: 500 GB
• Form Factor: M.2 2280
• #Hide#Interface Type: PCI Express
• Interface: PCIe 4.0 x4
• Controller: Samsung Elpis
• Read: Up to 6900 MB/s
• Write: Up to 5000 MB/s
• Max Random 4K R/W: “800,000 IOPS / 1,000,000 IOPS”
• Power Consumption: Average: 5.9 W
  Maximum: 7.4 W (Burst mode)
• Weight/Dimensions: 9 g
  80.15 x 22.15 x 2.38 mm
• Operating Temperatures: 0 – 70 °C
• Shock Resistance: “1,500 G & 0.5 ms (Half sine)”
• MTBF: 1.5 Million Hours
• Total Bytes Written (TBW): 300TBW
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.0760 kg
• Warranty: 5 Years or if the drive exceeds Total Bytes Written (see above)
