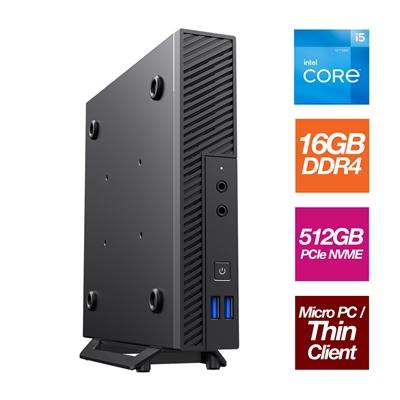

Small Form Factor – Intel i5 12400 6 Core 12 Threads 2.50GHz (4.40GHz Boost), 16GB RAM, 512GB NVMe M.2, – 1L VESA Mountable Small Foot Print for Home or Office Use – Pre-Built PC

Description

The LT100 is an ultra-thin Mini-ITX chassis, a strong and lightweight 1 Litre Desktop PC that can be easily and conveniently mounted to any VESA compatible monitor or display.

Despite the size this 1L chassis is big enough to create a compact system and the flexibility of the LT100 ensures that you can create a PC to match your requirements whether that is for business or entry-level gaming, the chassis delivers the performance and functionality you need.

Product Description
Small Form Factor – Intel i5 12400 6 Core 12 Threads 2.50GHz (4.40GHz Boost), 16GB RAM, 512GB NVMe M.2, – 1L VESA Mountable Small Foot Print for Home or Office Use – Pre-Built PC

Processor
Intel Core i5 12400 2.5GHz 6 Core LGA 1700 Alder Lake Processor, 12 Threads, 4.4GHz Boost, Intel UHD 730 Graphics

Processor Cores
6

Processor Threads
12

Core Clock Speed
2.50GHz

Core Boost Speed
4.40GHz

Memory
Patriot Signature Line 16GB No Heatsink (1 x 16GB) DDR4 2666MHz SODIMM System Memory

Memory Configuration
1 x 16GB
2 Lanes (1 occupied)

SSD Drive
Patriot P300 512GB M.2 2280 PCIe NVMe SSD

Format
NVMe M.2

Max Read/Write Speeds
Sequential Read : 1700MB/s
Sequential Write : 1100 MB/s

Hard Drive
N/A

Optical Drive
N/A

Graphics
Intel UHD Graphics 730
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.40 GHz
Execution Units
24
Max Resolution (HDMI)
4096 x 2160 @ 60Hz
Max Resolution (DP)
7680 x 4320 @ 60Hz

Graphics Card I/O
N/A

Operating System
N/A

Card Reader
N/A

Networking
N/A

Power Supply
External 120w (provided)

Motherboard
Asus PRO H610T D4-CSM – Corporate Stable Model, Intel H610, 1700, Thin Mini ITX, 2 DDR4 SO-DIMM, HDMI, DP, LVDS

Storage
2 x SATA III
1 x M.2 (2260/2280) – SATA & PCIe

Rear I/O
2 x USB 3.2 Gen2
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Realtek 1Gb Ethernet
2 x Audio jacks
1 x DC Power (Support 19V)

Internal I/O
1 x 4-pin CPU Fan
1 x 4-pin Chassis Fan
1 x 2-pin +19V
1 x SATA power
1 x M.2 (Key M)
2 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x USB 2.0
1 x 2-pin internal DC power
1 x Stereo speaker
1 x DMIC 1 x Backlight inverter voltage selection
1 x FPD brightness
1 x Panel voltage selection
1 x Panel off
1 x Clear CMOS
1 x Chassis Intrude
1 x COM Port
1 x COM debug
1 x Front Panel Audio
1 x LVDS 1 x M.2 slot (Key E)
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Chassis
LT100 1 Litre USB3.0 Ultra-Thin Mini-ITX Computer Case

IO Ports
2 x USB 3.0
1 x HD Audio
1 x Microphone

Dimensions
182mm x 36mm x 186mm (W x H x D)

Package Weight
4 kg

Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
