What This Product Does

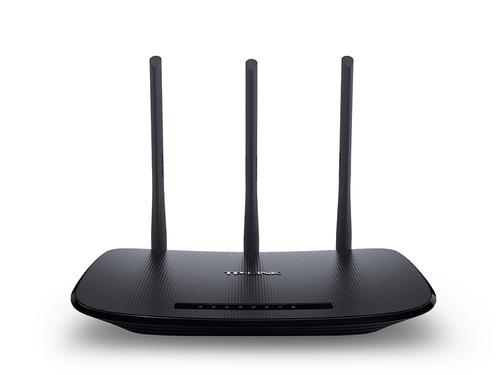

450Mbps Wireless N Router TL-WR940N is a combined wired/wireless network connection device designed specifically for small business and home office networking requirements. With MIMO Technology, TL-WR940N creates an exceptional and advanced wireless performance, making it ideal for streaming HD video, VoIP and online gaming. Also, WPS button on the sleek and fashionable exterior ensures WPA2 encryptions, preventing the network from outside intrusions.
Wireless N Speed & Range*
Complying with the IEEE 802.11n standard, TL-WR940N can establish a wireless network and get up to 18X the speed and 6X the range of conventional 11g products. Also, with transmission rates up to 450Mbps, it shows more excellent abilities of mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!
Better Wireless Performance
The router has the speed to work smoothly with almost any bandwidth intensive application including VoIP, HD streaming, or online gaming, without the lag. Using its powerful N technologies, the router is also able to mitigate data loss over long distances and through obstacles turning your home and even your yard into one big hot – spot.
WPA / WPA2 Encryptions
WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.
WPS
Instantly setup WiFi connections simply by pressing the “WPS” button.
Easy Setup
Either using the optimized user interface and setup wizard or the CD (included) setup wizard will allow you to get ‘online’ quickly and easily.
Video
Specs
WAN connection
Ethernet WAN
DSL WAN
Whether or not the product features a DSL WAN (Wide Area Network) connection option.
SIM card slot
Whether the device features a SIM card slot.
3G/4G USB modem compatibility
Wireless LAN features
Wi-Fi band
The frequency bands the product features.
Single-band (2.4 GHz)
Top Wi-Fi standard
Connection of this device is done via Wi-Fi in a high standard.
Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)
450 Mbit/s
Wi-Fi standards
The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type
The characteristics of the Ethernet LAN interface.
Fast Ethernet
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10, 100 Mbit/s
Cabling technology
Type of cable technology performance.
10/100Base-T(X)
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding
VPN support
PPTP, L2TP, IPSec
Receiver sensitivity
270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
Mobile network
3G
Third generation of mobile telecommunications technology, 3G finds application in wireless voice telephony, mobile Internet access, fixed wireless Internet access, video calls and mobile TV.
4G
Fourth generation of mobile phone mobile communication technology standards. A 4G system provides mobile ultra-broadband Internet access, for example to laptops with USB wireless modems, to smartphones, and to other mobile devices. Conceivable applications include amended mobile web access, IP telephony, gaming services, high-definition mobile TV, video conferencing, 3D television, and cloud computing.
Ports & interfaces
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
4
USB port
The device features a socket into which a USB cable can be plugged.
Memory card slot(s)
Places where memory cards are placed inside and connected to the computer motherboard.
Management features
Web-based management
Using a website/web application to manage something.
Quality of Service (QoS) support
Reset button
WPS push button
Security
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall
Stateful Packet Inspection (SPI)
DoS attack prevention
Filtering
MAC address filtering
Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
IP address filtering
DMZ support
Protocols
DHCP client
Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
DHCP server
A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
Universal Plug and Play (UPnP)
Design
Product colour
The colour e.g. red, blue, green, black, white.
Black
Wall mountable
The product can be mounted on (attached to ) a wall.
LED indicators
LAN, Power, Status
On/off switch
The button which is pressed to switch the device on or off.
Product type
The sub-category of the product.
Tabletop router
Packaging content
Cables included
LAN (RJ-45)
AC adapter included
Manual
Quick installation guide
Quick start guide
Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Antenna
Antenna design
External
Antenna gain level (max)
Antenna gain is the measurement of an antenna’s ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.
5 dBi
Antennas quantity
3
Detachable antenna(s)
Power
Power source type
What the power source is.
AC
Output voltage
12 V
Output current
1 A
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 – 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 – 70 °C
Operating relative humidity (H-H)
10 – 90%
Storage relative humidity (H-H)
5 – 90%
System requirements
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Weight & dimensions
Width
The measurement or extent of something from side to side.
230 mm
Depth
The distance from the front to the back of something.
144 mm
Height
The measurement of the product from head to foot or from base to top.
35 mm
Logistics data
Harmonized System (HS) code
85176990
