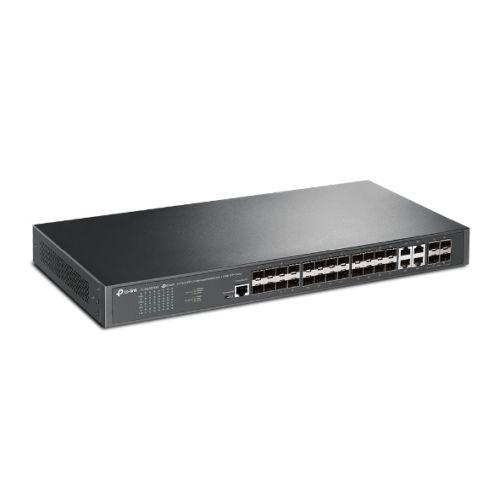

TP-LINK (TL-SG3428XF) JetStream 24-Port SFP L2+ Managed Switch w/ 4 10GE SFP+ Slots, Dual Redundant PSUs, Rackmountable

TP-LINK (TL-SG3428XF) JetStream 24-Port SFP L2+ Managed Switch w/ 4 10GE SFP+ Slots, Dual Redundant PSUs, Rackmountable

£526.99

Description

Specification

  • Rackmountable: Yes
  • Managed: Yes
  • Number of Ports: 24
  • Max RJ45 Transfer Rate: 10/100/1000 Mbps
  • Interface(s): 20 x Gigabit SFP Ports
    4 x Gigabit SFP/RJ45 Combo Ports
    4 x 10G SFP+ Slots
    1 x RJ45 Console Port
    1 x Micro-USB Console Port
  • PoE Ports (RJ45): –
  • Switching Capacity: 128 Gbps
  • Power Supply: Dual Reduant Power Supplies
    100-240 V AC~50/60 Hz
  • Dimensions: 440 x 220 x 44 mm
  • Mac Address Table: 16 K
  • Packet Forwarding Rate: 95.23 Mpps
  • Jumbo Frame: 9 KB
  • Advanced Functions: Automatic Device Discovery
    Batch Configuration
    Batch Firmware Upgrading
    Intelligent Network Monitoring
    Abnormal Event Warnings
    Unified Configuration
    Reboot Schedule
  • Quality of Service: 8 priority queues
    802.1p CoS/DSCP priority
    Queue scheduling
    Bandwidth Control
    Smoother Performance
    Action for Flows
  • Layer Features: L2 and L2+ Features
    Link Aggregation
    Spanning Tree Protocol
    Loopback Detection
    Flow Control
    Mirroring

    L2 Multicast
    IGMP Snooping
    IGMP Authentication
    MLD Snooping
    MVR
    Multicast Filtering: 256 profiles and 16 entries per profile

  • VLAN: “VLAN Group – Max 4K
    802.1Q Tagged VLAN
    MAC VLAN: 30 Entries
    Protocol VLAN: Protocol Template 16, Protocol VLAN 16
    Private VLAN
    GVRP
    VLAN VPN (QinQ)
    Voice VLAN”
  • Access Control: Time-based ACL
    MAC ACL
    IP ACL
    Combined ACL
    Packet Content ACL
    IPv6 ACL
    Policy
    ACL apply to Port/VLAN
  • Security: IP-MAC-Port Binding
    IPv6-MAC-Port Binding
    DoS Defend
    Static/Dynamic Port Security
    Broadcast/Multicast/Unicast Storm Control
    802.1X
    AAA (including TACACS+)
    Port Isolation
    Secure web management through HTTPS with SSLv3/TLS 1.2
    Secure Command Line Interface (CLI) management with SSHv1/SSHv2
    IP/Port/MAC based access control
  • Management: “Omada App*
    Centralized Management*
    Cloud Access*

    *Requires OC300, OC200, Cloud-Based/Software Controller

    Management Features:
    Web-based GUI
    Command Line Interface through the console port, telnet
    SNMP v1/v2c/v3
    SDM Template
    DHCP/BOOTP Client
    802.1ab LLDP/LLDP-MED
    DHCP AutoInstall
    Dual Image, Dual Configuration
    CPU Monitoring
    Cable Diagnostics
    EEE
    Password Recovery
    SNTP
    System Log”

  • Environment: “Operating Temperature: 0–45 °C (32–113 °F);
    Storage Temperature: -40–70 °C (-40–158 °F)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing”
  • Package Contents: TL-SG3428XF Switch
    Power Cord
    Quick Installation Guide
    Rackmount Kit
    Rubber Feet
  • Package Type: Retail
  • Package Weight: 4.4500 kg
  • Warranty: Limited Lifetime
  • #Hide#POE: No

In stock

SKU: TL-SG3428XF Category:
TP-LINK

Description

JetStream 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots



  • 10G Lightning-Fast Uplink: 4x 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
  • Gigabit Fiber Speeds: 20x gigabit SFP ports and 4x gigabit SFP/RJ45 Combo ports s offer high-speed and reliable connections to other switches and devices.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities






Full Fiber Switch with Lightning-Fast 10G
Build and expand your lightning-fast network with TP-Link TL-SG3428XF—a fully managed switch with 20x gigabit SFP ports, 4x gigabit SFP/RJ45 combo ports, and 4x 10G SFP+ ports. Being ideal for any business network, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.

Seamless Integration to Omada Cloud SDN
Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Learn More

Dual Redundant Power Supplies
Two power supplies back each other up and makes an ideal choice for reliable networking architecture.

Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

Secure Networking
Our high-quality security features defend against a range of network threats. They include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks makes it easier to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to valid user credentials.



Enterprise Level Features
802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are supported by the lineup of innovative L2+ features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reduces unnecessary traffic. IGMP throttling & filtering restrict subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.



Advanced Quality of Service (QoS)
Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in low bandwidth situations.



ISP Features**
Internet Service Providers (ISPs) get the support they need with features including sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.



IPv6 Support
An enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without needing to upgrade your hardware. Take advantage of features to enhance your network environment, including Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover.

*Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller
**ISP features can only be configured in standalone mode.
