Akasa Turing TN Fanless NUC Case for 11th Gen Intel NUC (Tiger Canyon) Boards, 28W TDP, Position Vertically/Horizontally, M.2 Heatsink

Akasa Turing TN Fanless NUC Case for 11th Gen Intel NUC (Tiger Canyon) Boards, 28W TDP, Position Vertically/Horizontally, M.2 Heatsink

£159.99

Description

Specification

  • Form Factor: NUC
  • #Hide#Small Form Factor: Yes (SFF)
  • Power Supply Wattage: No PSU
  • Motherboard Support: UCFF 4″””” x 4″”””

    Intel NUC model:
    NUC11TNKi3 / NUC11TNHi3 / NUC11TNBi3
    NUC11TNKi5 / NUC11TNHi5 / NUC11TNBi5
    NUC11TNKv5 / NUC11TNHv5 / NUC11TNBv5
    NUC11TNKi7 / NUC11TNHi7 / NUC11TNBi7
    NUC11TNKv7 / NUC11TNHv7 / NUC11TNBv7

  • #Hide#Window(s): No
  • Connectors / Controls: Front I/O Openings:
    DC-In port
    2 x HDMI port
    2 x USB Type-A
    2 x USB Type-C
    1 x LAN port
  • Drive Bays: 1 x 2.5” SSD/HDD (up to 9.5mm)
  • Cooling System: Fanless
    Internal M.2 SSD heatsink
    Max TDP support: 28W
  • Colour: Black
  • Material: Aluminium
  • Weight/Dimensions: (W x D x H) 95 x 113.5 x 247.9 mm
  • Additional Features: See Overview
  • Accessories: Thermal compound
    Thermal gap filler
    Screws for motherboard (M3)
    Washer
    M.2 SSD heatsink
    Thermal gap filler (for M.2 SSD)
    Clips/Screws
    EMI gasket
    2.5” HDD/SSD screws (M3)
    2.5” HDD/SSD mounting bracket
    HDD protective film
    SATA adapter cable
    Screws
    End cover
    Standoffs
    Case feet kit
  • Package Weight: 2.8000 kg
  • Warranty: 1 Year

Out of stock

EAN: 4710679551036 SKU: A-NUC68-M1B Category:

Description

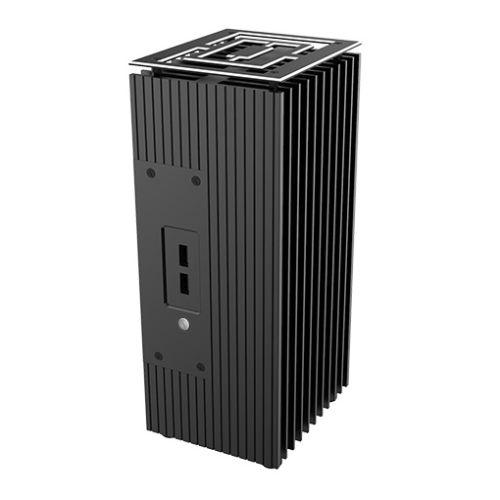

Compact fanless case for Intel 11th Generation NUC (Tiger Canyon). Internal M.2 SSD heatsink reduces heat and enhances performance.


  • Aluminium fanless cooling design
  • Stylish cover panels with diamond effect
  • Internal M.2 SSD heatsink
  • Positioned vertically or horizontally
  • Suitable for Core™ i3, i5 and i7 with vPro Technology (Tiger Canyon NUCs) up to Intel’s specification of 28W TDP





Superb Cooling Performance
Excess heat from APU and VRM is effectively transferred from the aluminium core to the all-aluminium body which acts as a heatsink to dissipate the heat to the surrounding. Ensuring the system runs at optimal thermal performance.
Contemporary and Made-to-Last Design
Aluminium case provides durability and long-lasting use. Coupled with symmetrically extruded fins and striking classical inspired panels for stunning aesthetics and functionality, which means the case look great in any environment.
Contemporary design
Ideal for home and business applications from digital signage to home-theatre setups and more.
Supports up to Four 4K Displays

The Turing TN case provides connector openings for connectivity of four 4K displays. Perfect for an array of business applications such as security and digital signage.



Additional information

Weight 2.8 kg
Brand

AKASA
MPN

A-NUC68-M1B
