Description

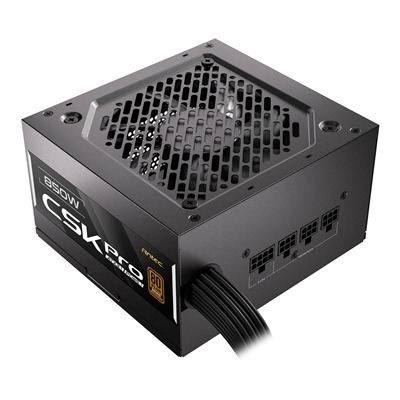

The Antec CSK850 PRO is an 850 W semi-modular power supply designed for modern gaming and high-performance PCs. Compliant with the ATX 3.1 standard and PCIe 5.1 ready, it supports the latest graphics cards through its native 12V 2×6 (12VHPWR) connector. Featuring 80 Plus Bronze efficiency and advanced CircuitShield™ protection, this PSU ensures reliable, efficient, and safe power delivery. Its compact design, quiet 120 mm fan with intelligent thermal control, and semi-modular cables make installation easy and improve system airflow. Backed by a 5-year warranty, it is a future-proof choice for demanding PC builds.
Full Specifications
Model:
CSK850 PRO
MPN:
0-761345-20071-4
Form Factor:
ATX 12V 3.1 semi-modular
Wattage:
850 W continuous
Efficiency:
80 Plus Bronze (up to ~90%)
ATX Standard:
ATX 3.1
PCIe Support:
PCIe 5.1 native 12V 2×6 GPU connector
Protection Features (CircuitShield™):
OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
Cooling:
120 mm silent fan with thermal manager fan speed control
PFC:
Active PFC
Power Good Signal:
100–150 ms
Input Voltage:
200–240 V AC, 12 A max, 50–60 Hz
Dimensions (L x W x H):
140 x 150 x 86 mm
Net Weight:
Approximately 1.95 kg
Connectors:
1 x 24-pin ATX main
1 x 16-pin (12+4) PCIe 5.1 (12VHPWR, up to 600 W)
2 x 8-pin (4+4) CPU EPS
4 x 8-pin (6+2) PCIe
6 x SATA
3 x Molex
Operating Temperature:
0–40 °C
Certifications:
TUV, CB, RCM, CE, BIS, UKCA, KC
Warranty:
5 years
