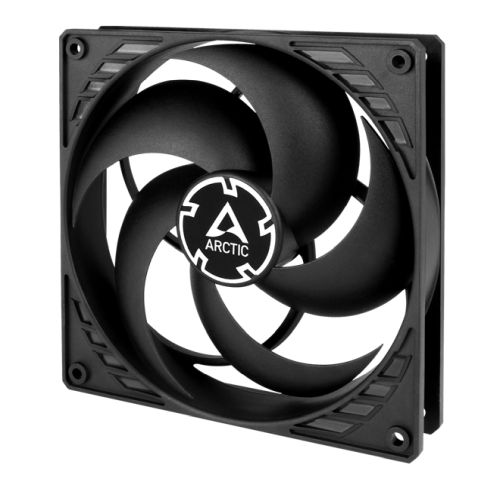

Arctic P14 14cm Pressure Optimised PWM PST Case Fan, Black, Fluid Dynamic

Arctic P14 14cm Pressure Optimised PWM PST Case Fan, Black, Fluid Dynamic

£15.99

Description

Specification

  • Type: 14cm Case Fan
  • Fan Connector(s): 4-pin
  • Fan Controller: PWM
  • Installation: Screws
  • #Hide#LED Lighting: No
  • Colour: Black
  • LED Lighting: –
  • Weight: 194g
  • Fan Dimensions: 140 x 140 x 27 mm
  • Rotation Speed: 200 – 1700 RPM
  • Fan Bearing: Dual Ball Bearing
  • Air Flow: 72.8CFM (123.76 m3/h)
  • Noise level: 0.3 Sone (@ 100% RPM)
  • Power: 12V DC (@100% PWM)
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 0.2400 kg
  • Warranty: 6 Years

In stock

EAN: 4895213701563 SKU: ACFAN00125A Category:

Description



Pressure-optimised 140 mm Fan with PWM PST for Continuous Operation


Optimised For Static Pressure
During the development of the new P14 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST CO is particularly suitable for use on heatsinks and radiators.





More Efficient Technology
The motor is powered by a PWM IC of the newest generation, which allows the new P14 PWM PST CO to run much more efficiently than its predecessors. This saves energy without compromising the performance.





For Continuous Operation
The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential.





Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.





Extended Life Span
A 10 degrees celsius lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years.





200 To 1700 Rpm Regulated VIA PWM
With a wide range of regulation and the PWM Sharing Technology (PST), the P14 PWM PST CO fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.






Two Way Installation

  • Push warm air out of the case
  • Pull cool air into your case


Additional information

Weight 0.238 kg
Brand

ARCTIC
MPN

ACFAN00125A
