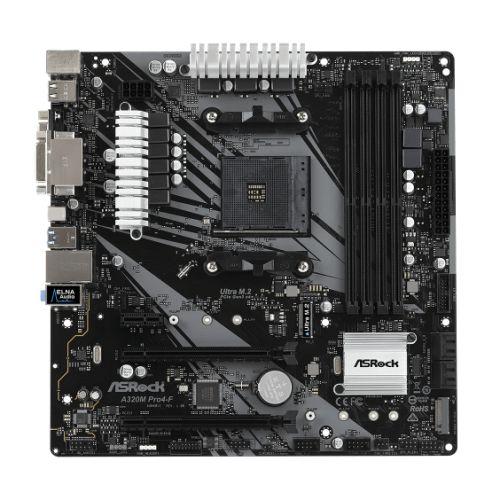

Asrock A320M PRO4-F, AMD A320, AM4, Micro ATX, 4 DDR4, VGA, DVI, HDMI, M.2

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM4
• Chipset: AMD A320
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: 3200 / 2933 / 2667 / 2400 / 2133 MHz
• Maximum Memory: 64GB
• Graphics: Integrated AMD Radeon Graphics
• Graphics Ports: 1 x VGA
  1 x DVI-D
  1 x HDMI
• Multi-GPU Support: Supports AMD Quad CrossFireX and CrossFireX
• PCI/PCI Express: 1 x PCIe 3.0 x16
  1 x PCIe 2.0 x16
• Storage: 4 x SATA III
  1 x M.2 Socket (2242/2260/2280) – PCIe
  1 x M.2 Socket (2230/2242/2260/2280) – SATA
• RAID: “RAID 0, 1, 10”
• Wireless: –
• LAN: GB LAN
• Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
• USB Ports Supported: “1 x USB 3.1 Gen1 Type-C (at back)
  6 x USB 3.1 Gen1 (4 at back, 2 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)”
• Back Panel I/O Ports: 1 x PS/2 Mouse
  1 x PS/2 Keyboard
  1 x D-Sub
  1 x DVI-D
  1 x HDMI
  2 x USB 2.0
  1 x USB 3.1 Gen1 Type-C
  4 x USB 3.1 Gen1
  1 x RJ-45 LAN
  HD Audio Jacks
• Internal I/O Connectors: 1 x COM Port
  1 x TPM
  1 x Power LED and Speaker
  1 x RGB LED
  1 x Addressable LED
  1 x AMD Fan LED
  1 x CPU Fan
  2 x Chassis Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x Front Audio
  1 x AMD LED Fan USB
• .: 2 x USB 2.0
  1 x USB 3.1 Gen1
• Accessories: “Quick Installation Guide, Support CD, I/O Shield
  2 x SATA Data Cables
  2 x Screws for M.2 Sockets”
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.1600 kg
• Warranty: 2 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
