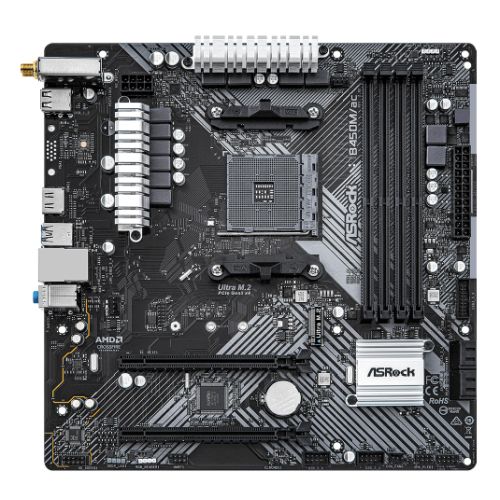

Asrock B450M/AC R2.0, AMD B450, AM4, Micro ATX, 4 DDR4, HDMI, GB LAN, AC Wi-Fi, 1x M.2

Asrock B450M/AC R2.0, AMD B450, AM4, Micro ATX, 4 DDR4, HDMI, GB LAN, AC Wi-Fi, 1x M.2

£76.99

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: AMD AM4
  • Chipset: AMD B450
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 2 x DIMM
  • RAM Speeds: 3200+(OC)/2933/2667/2400/2133 MHz
  • Maximum Memory: 32GB
  • Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
  • Graphics Ports: 1 x VGA
    1 x DVI-D
    1 x HDMI
  • Multi-GPU Support: –
  • PCI/PCI Express: Ryzen CPUs (Summit & Pinnacle Ridge):
    1 x PCIe 3.0 x16

    Ryzen CPUs (Raven Ridge):
    1 x PCIe 3.0 x16
    1 x PCIe 2.0 x1

  • PCI: –
  • Storage: 4 x SATA III
    1 x Ultra M.2 2242/2260/2280 – SATA & PCIe
  • RAID: “RAID 0, 1, 10 “
  • Wireless: –
  • LAN: GB LAN
  • Audio: 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  • USB Ports Supported: “6 x USB 3.1 Gen1 (4 at back, 2 at mid-board)
    6 x USB 2.0 (2 at back, 4 at mid-board)”
  • Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
    1 x D-Sub
    1 x DVI-D
    1 x HDMI
    2 x USB 2.0
    4 x USB 3.1 Gen1
    1 x RJ-45 LAN
    HD Audio Jacks
  • Internal I/O Connectors: 1 x Print Port
    1 x COM Port
    1 x TPM
    1 x Chassis Intrusion and Speaker
    1 x CPU Fan
    1 x Chassis Fan
    1 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    1 x 4 pin 12V
    1 x Front Audio
    2 x USB 2.0
    1 x USB 3.1 Gen1
  • Accessories: Quick Installation Guide
    Support CD
    I/O Shield
    2 x SATA Data Cables
    1 x Screw for M.2 Socket
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 0.8000 kg
  • Warranty: 3 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN

In stock

EAN: 4710483932809 SKU: B450M/AC R2.0 Category:

Description

  • AMD AM4 Socket
  • Supports DDR4 3200+ (OC)
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
  • Graphics Output: HDMI, DVI-D, D-Sub
  • Supports Triple Monitor
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 6 USB 3.1 Gen1 (2 Front, 4 Rear)
  • Realtek Gigabit LAN


AMD StoreMI Technology

A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data.



Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.




High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.




Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.




Triple Monitor

Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
*Supported with processors with integrated graphics only.




4K x 2K

Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.
*Supported with A-Series APUs only.




Solid Capacitor Design

ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.




ELNA Audio Caps

Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.




Digi Power

This motherboard uses a next generation Hybrid Digi Power design to bring precise control and smooth power. With the ensured efficient and clean power delivery to the CPU, the stability and lifespan of motherboard is also greatly enhanced.




A-Tuning

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.




Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Additional information

Brand

Asrock
MPN

B450M/AC R2.0
