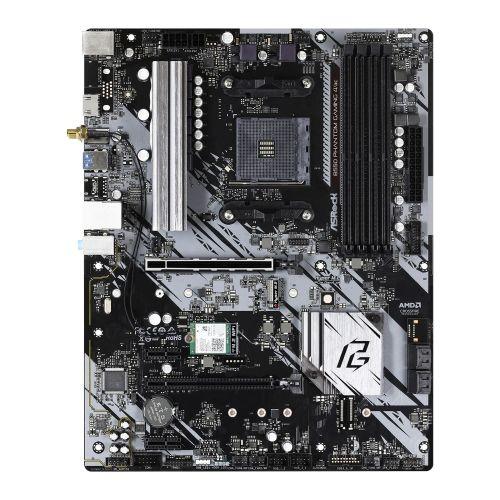

Asrock B550 PHANTOM GAMING 4/AC, AMD B550, AM4, ATX, 4 DDR4, HDMI, XFire, AC Wi-Fi, PCIe4, M.2
£123.99
Description
Specification
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: AMD AM4
- Chipset: AMD B550
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
- Maximum Memory: 128GB
- Graphics: Integrated Graphics Processor*
Graphics specifications may vary between CPU types
- Graphics Ports: 1 x HDMI
- Multi-GPU Support: Supports AMD Quad CrossFireX and CrossFireX
- PCI/PCI Express: 2 x PCIe 4.0 x16
2 x PCIe 3.0 x1 - Storage: 4 x SATA III
1 x M.2 (2260/2280/22110) – PCIe - RAID: “RAID 0, 1, 10”
- Wireless: Intel 802.11ac WiFi Module
Supports IEEE 802.11a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports wireless connections up to 433Mbps
Supports Bluetooth 4.2 + High speed class II - LAN: GB LAN
- Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
- USB Ports Supported: “8 x USB 3.2 Gen1 (6 at back, 2 at mid-board)
4 x USB 2.0 (mid-board)” - Back Panel I/O Ports: 2 x Antenna
1 x PS/2 Mouse/Keyboard
1 x HDMI
6 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks - Internal I/O Connectors: 1 x COM Port
1 x SPI TPM
1 x Power LED and Speaker
2 x RGB LED
2 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
4 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x 4 pin 12V
1 x Front Audio - .: 2 x USB 2.0
1 x USB 3.2 Gen1 - Accessories: 2 x SATA Data Cables
2 x ASRock WiFi 2.4/5 GHz Antennas
1 x Screw for M.2 Socket - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.3600 kg
- Warranty: 2 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
Out of stock
Description
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
- Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
- 8 Power Phase Design, Digi Power
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1
- Graphics Output Options: HDMI
- AMD CrossFireX™
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4)
- 8 USB 3.2 Gen1 (2 Front, 6 Rear)
- Gigabit LAN, Wi-Fi 802.11ac (2.4/5GHz) + BT 4.2
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
Premium 50A Power Choke
Polychrome RGB Sync-certified
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
– Make sure heavy graphics cards to be well-installed.
Premium 50A Power Choke
Sapphire Black PCB
High Density Glass Fabric PCB
2oz Copper PCB
Additional information
Weight | 1.36 kg |
---|---|
Brand | Asrock |
MPN | B550 PHANTOM GAMING 4/AC |
