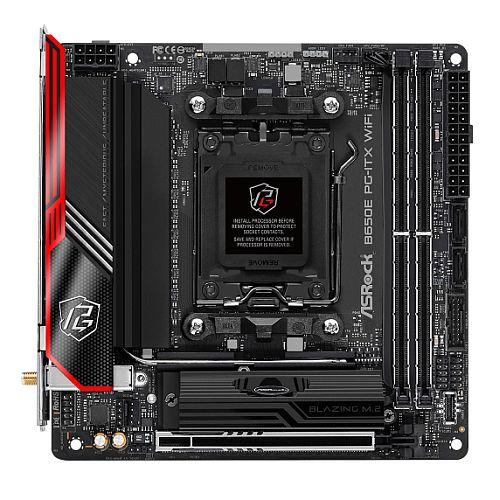

Asrock B650E PG-ITX WIFI, AMD B650, AM5, Mini ITX, 2 DDR5, HDMI, eDP, Wi-Fi 6E, 2.5G LAN, PCIe5, 2x M.2

Asrock B650E PG-ITX WIFI, AMD B650, AM5, Mini ITX, 2 DDR5, HDMI, eDP, Wi-Fi 6E, 2.5G LAN, PCIe5, 2x M.2

£250.99

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: ATX
  • Socket: AMD AM5
  • Chipset: AMD B650
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: “DDR5 (Dual Channel)
    Supports ECC/non-ECC, un-buffered memory
    Supports XMP and EXPO for Overclocking”
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 7200+(OC)
  • Maximum Memory: 256GB
  • Graphics: Integrated Graphics*
    *Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x HDMI
    1 x DisplayPort
  • Multi-GPU Support: Supports AMD CrossFire
  • PCI/PCI Express: 1 x PCIe 5.0 x16 (supports x16 mode)
    1 x PCIe 3.0 x16 (supports x4 mode)
    1 x PCIe 4.0 x1
  • Storage: 2 x SATA III
    1 x M.2 (2260/2280) – PCIe 5.0 x4
    1 x M.2 (2260/2280) – PCIe 4.0 x4
    1 x M.2 (2260/2280) – PCIe 4.0 x4
  • RAID: “Supports RAID 0 and RAID 1 for SATA storage devices
    Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices”
  • Wireless: 802.11axe Wi-Fi 6E Module
    Supports IEEE 802.11a/b/g/n/ac/ax/axe
    Supports Dual-Band 2×2 with extended 6GHz band support
    2 antennas to support 2 (Transmit) x 2 (Receive) diversity tech
    Supports Bluetooth 5.2 + High speed class II
    Supports MU-MIMO
  • LAN: 2.5GB LAN
  • Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • USB Ports Supported: Rear:
    1 x USB 3.2 Gen2x2 Type-C
    1 x USB 3.2 Gen2 Type-A
    2 x USB 3.2 Gen1 Type-A
    2 x USB 3.2 Gen1 Type-A
    4 x USB 2.0

    Front:
    1 x USB 3.2 Gen1 Type-C
    4 x USB 3.2 Gen1 Type-A
    4 x USB 2.0

  • Back Panel I/O Ports: 2 x Antenna
    1 x HDMI
    1 x DisplayPort 1.4
    1 x Optical SPDIF Out
    1 x USB 3.2 Gen2x2 Type-C
    1 x USB 3.2 Gen2 Type-A
    4 x USB 3.2 Gen1 Type-A
    4 x USB 2.0
    1 x RJ-45 LAN
    1 x BIOS Flashback Button
    1 x Line Out Jack
    1 x Microphone Input Jack
  • Internal I/O Connectors: 1 x SPI TPM
    1 x Power LED and Speaker
    1 x RGB LED
    3 x Addressable LED
    1 x CPU Fan
    1 x CPU/Water Pump Fan
    4 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    2 x 8 pin 12V
    1 x Front Panel Audio
    2 x USB 2.0
    2 x USB 3.2 Gen1
  • .: 1 x Front Panel Type C USB 3.2 Gen1
  • Accessories: 1 x User Manual
    2 x SATA Data Cables
    2 x ASRock WiFi 2.4/5/6 GHz Antennas
    3 x Screws for M.2 Sockets
    1 x Standoff for M.2 Socket
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 2.2100 kg
  • Warranty: 3 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
  • #Hide#Wi-Fi: Yes (Wi-Fi)
  • #Hide#RGB Lighting: Out of the box RGB lighting

In stock

EAN: 4710483941078 SKU: B650E PG-ITX WIFI Category:

Description



Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics.

Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.

  • Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors
  • 14+2+1 Power Phase, 80A Dr.MOS for VCore
  • 4 x DDR5 DIMMs, supports up to 7200+ (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1
  • Graphics Output Options: 1 HDMI, 1 DisplayPort
  • Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4)
  • 1 USB 3.2 Gen2x2 Type-C (Rear)
  • 1 USB 3.2 Gen1 Type-C (Front)
  • 1 USB 3.2 Gen2 Type-A (Rear)
  • 8 USB 3.2 Gen1 Type-A (4 Rear, 4 Front)
  • 8 USB 2.0 (4 Rear, 4 Front)
  • Dragon 2.5G LAN
  • 802.11axe WiFi 6E + Bluetooth
  • Supports ASRock Auto Driver Installer, BIOS Flashback




Optimized VRM Design
  • Dr. MOS – Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
  • 14+2+1 Power Phase Design – Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
  • 20K Capacitor – 20K black capacitors with lifespans of at least 20,000 hours, provides even longer component durability compares with normal capacitors, extending MTBF to give better system stability.
8 Layer PCB design
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.



Extreme Overclocking Performance
  • DDR5 EXPO & XMP Support – Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 8-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7200MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
  • Blazing OC Tuner – The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.
  • AMD PBO Technology – PBO(Precision Boost Overdrive) is an automatic performance-maximizing technology that is able to improve your PC’s performance by raising clock speeds based on the conditions inside your PC, AMD’s processors is equipped with intelligent thermal sensors designed to analyze conditions inside your PC and make the “go faster” decision as often as possible, please ensure system cooling is sufficient before enabling PBO.
Nahimic Audio
  • Audio That Matters – Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
  • Enhance Communication Quality – The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
  • Sound Tracker – The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
  • Works on any devices – Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

Polychrome RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

High Speed M.2 Solution
  • PCIe Gen5 Blazing M.2 – The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
  • Multi-Layer M.2 Heatsink – The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.
  • Anti-Drop Screw – Tired of dropping screws or screws missing inside chassis? The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

EZ Setting

  • Auto Driver Installer – Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
  • BIOS Flashback – Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
  • Flexible Integrated IO Shield – Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.




Additional information

Weight 1.2 kg
Brand

Asrock
MPN

B650E PG-ITX WIFI
