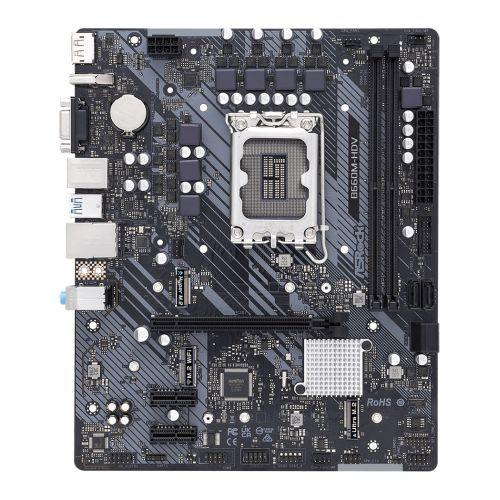

Asrock B660M-HDV, Intel B660, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4, 2x M.2

£90.99

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1700
  • Chipset: Intel B660
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 5066+(OC)
  • Maximum Memory: 64GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types

  • Graphics Ports: 1 x VGA
    1 x HDMI
    1 x DisplayPort
  • PCI/PCI Express: 1 x PCIe 4.0 x16
    2 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2260/2280) – PCIe
    1 x M.2 (2260/2280) – SATA & PCIe
  • RAID: “Supports RAID 0,1, 5,10”
  • Wireless:
  • LAN: GB LAN
  • Audio: 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
  • USB Ports Supported: “1 x USB 3.2 Gen1 Type-C (at back)
    5 x USB 3.2 Gen1 Type-A (3 at back, 2 at mid-board)
    5 x USB 2.0 (2 at back, 3 at mid-board)”
  • Back Panel I/O Ports: 2 x Antenna Mounting Points
    1 x PS/2 Mouse/Keyboard
    1 x D-Sub
    1 x HDMI
    1 x DisplayPort 1.4
    3 x USB 3.2 Gen1 Type-A
    1 x USB 3.2 Gen1 Type-C
    2 x USB 2.0
    1 x RJ-45 LAN
    HD Audio Jacks
  • Internal I/O Connectors: 1 x COM Port
    1 x SPI TPM
    1 x Chassis Intrusion and Speaker
    1 x CPU Fan
    1 x CPU/Water Pump Fan
    2 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    1 x 8 pin 12V
    1 x Front Panel Audio
    2 x USB 2.0
    1 x USB 3.2 Gen1
  • Accessories: “Quick Installation Guide, Support CD, I/O Shield
    2 x SATA Data Cables
    3 x Screws for M.2 Sockets”
  • Additional Features: See Overview
  • Package Weight: 0.9000 kg
  • Warranty: 2 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN

Out of stock

SKU: B660M-HDV Category:

Description

Asrock B660M-HDV, Intel B660, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4, 2x M.2

Additional information

Weight 0.9 kg
Brand

Asrock

MPN

B660M-HDV

Brand

ASROCK
