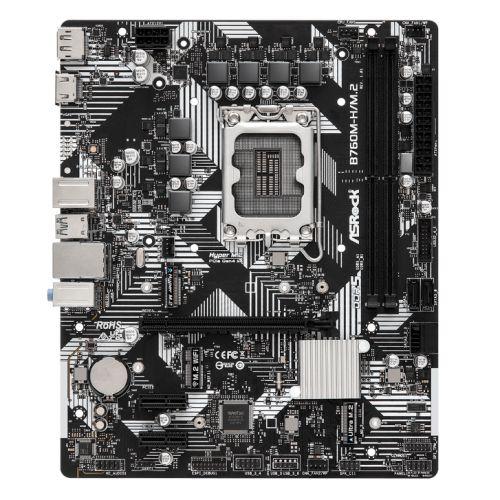

Asrock B760M-H/M.2, Intel B760, 1700, Micro ATX, 2 DDR5, HDMI, DP, GB LAN, PCIe4, 2x M.2

£98.99

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1700
  • Chipset: Intel B760
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: “DDR5 (Dual Channel)
    Non-ECC, un-buffered memory”
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 7200+(OC)
  • Maximum Memory: 96GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types

  • Graphics Ports: 1 x HDMI
    1 x DisplayPort
  • PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
    2 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2260/2280) – PCIe 4.0 x4
    1 x M.2 (2280) – SATA & PCIe 3.0 x4
  • RAID: “Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices”
  • Wireless:
  • LAN: GB LAN
  • Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • USB Ports Supported: Rear:
    1 x USB 3.2 Gen1 Type-C
    3 x USB 3.2 Gen1 Type-A
    2 x USB 2.0

    Front:
    2 x USB 3.2 Gen1 Type-A
    3 x USB 2.0

  • Back Panel I/O Ports: 2 x Antenna Mounting Points
    1 x PS/2 Mouse/Keyboard
    1 x HDMI
    1 x DisplayPort 1.4
    1 x USB 3.2 Gen1 Type-C
    3 x USB 3.2 Gen1 Type-A
    2 x USB 2.0
    1 x RJ-45 LAN
    HD Audio Jacks
  • Internal I/O Connectors: 1 x SPI TPM
    1 x Chassis Intrusion and Speaker
    1 x CPU Fan
    1 x CPU/Water Pump Fan
    2 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    1 x 8 pin 12V
    1 x Front Panel Audio
    2 x USB 2.0
    1 x USB 3.2 Gen1
  • Accessories: 1 x User Manual
    1 x I/O Shield
    2 x SATA Data Cables
    3 x Screws for M.2 Sockets
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: To be confirmed
  • Warranty: 3 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN

Out of stock

SKU: B760M-H/M.2 Category:

Description

B760M-H/M.2

  • Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • 5+1+1 Power Phase
  • Supports DDR5 7200MHz (OC)
  • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4),
  • 1 Ultra M.2 (PCIe Gen3x4)
  • 1 USB 3.2 Gen1 Type-C (Rear),
  • 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
  • 5 USB 2.0 (2 Rear, 3 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer
5+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.



DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality components, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.



High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.



M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.



Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.



USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.



Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
