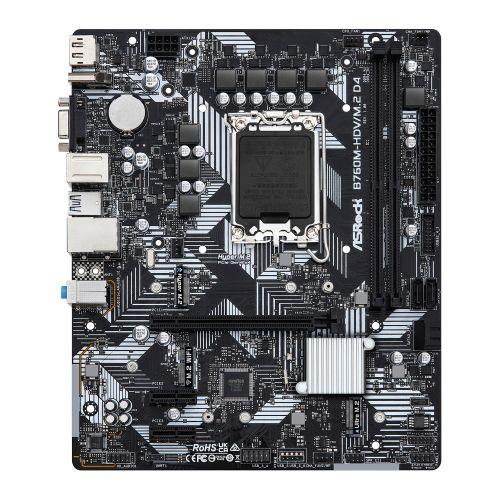

Asrock B760M-HDV/M.2 D4, Intel B760, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, GB LAN, PCIe4, 2x M.2

Asrock B760M-HDV/M.2 D4, Intel B760, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, GB LAN, PCIe4, 2x M.2

£101.99

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1700
  • Chipset: Intel B760
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 5333+(OC)
  • Maximum Memory: 64GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types

  • Graphics Ports: 1 x VGA
    1 x HDMI
    1 x DisplayPort
  • PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
    2 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2260/2280) – PCIe
    1 x M.2 (2260/2280) – SATA & PCIe
  • RAID: “Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices”
  • Wireless: –
  • LAN: GB LAN
  • Audio: 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
  • USB Ports Supported: “1 x USB 3.2 Gen1 Type-C (at back)
    5 x USB 3.2 Gen1 Type-A (3 at back, 2 at mid-board)
    5 x USB 2.0 (2 at back, 3 at mid-board)”
  • Back Panel I/O Ports: 2 x Antenna Mounting Points
    1 x PS/2 Mouse/Keyboard
    1 x D-Sub
    1 x HDMI
    1 x DisplayPort 1.4
    1 x USB 3.2 Gen1 Type-C
    3 x USB 3.2 Gen1 Type-A
    2 x USB 2.0
    1 x RJ-45 LAN
    HD Audio Jacks
  • Internal I/O Connectors: 1 x SPI TPM
    1 x Chassis Intrusion and Speaker
    1 x CPU Fan
    1 x CPU/Water Pump Fan
    2 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    1 x 8 pin 12V
    1 x Front Panel Audio
    2 x USB 2.0
    1 x USB 3.2 Gen1
  • Accessories: 1 x User Manual
    1 x I/O Shield
    2 x SATA Data Cables
    3 x Screws for M.2 Sockets
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 0.9000 kg
  • Warranty: 3 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN

Out of stock

SKU: B760MHDV M.2 D4 Category:
ASROCK

Description

B760M-HDV/M.2 D4

  • Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • 5+1+1 Power Phase
  • Supports DDR4 5333MHz (OC)
  • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort, D-Sub
  • Realtek ALC887/897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4),
  • 1 Ultra M.2 (PCIe Gen3x4 & SATA)
  • 1 USB 3.2 Gen1 Type-C (Rear),
  • 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
  • 5 USB 2.0 (2 Rear, 3 Front)
  • Realtek 1G LAN
  • Supports ASRock Auto Driver Installer
5+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.



High Speed M.2 Solution(PCIe Gen4 x4)

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.



M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.



3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.



Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!



Additional information

Weight 0.9 kg
Brand

Asrock
MPN

B760MHDV M.2 D4

Brand

ASROCK
