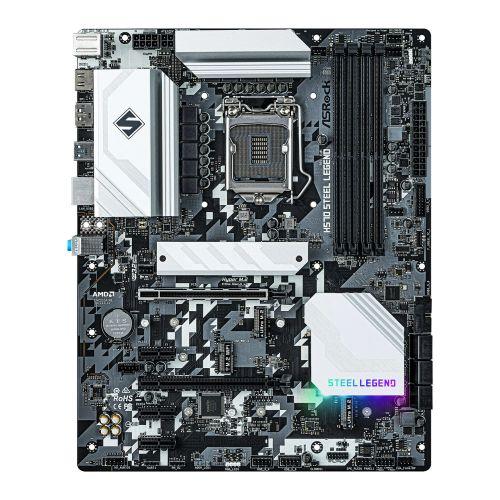

Asrock H570 STEEL LEGEND, Intel H570, 1200, ATX, 4 DDR4, XFire, HDMI, DP, 2.5G LAN, RGB, 3x M.2

Asrock H570 STEEL LEGEND, Intel H570, 1200, ATX, 4 DDR4, XFire, HDMI, DP, 2.5G LAN, RGB, 3x M.2

£161.99

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: ATX
  • Socket: Intel 1200 – Rocket Lake
  • Chipset: Intel H570
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 4800+(OC)
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types

  • Graphics Ports: 1 x HDMI
    1 x DisplayPort 1.4
  • Multi-GPU Support: Supports AMD Quad CrossFireX
  • PCI/PCI Express: 1 x PCIe 4.0 x16
    1 x PCIe 3.0 x16
    3 x PCIe 3.0 x1
  • Storage: 6 x SATA III
    1 x M.2 (2260/2280) – PCIe
    1 x M.2 (2260/2280) – SATA & PCIe
    1 x M.2 (2260/2280/22110) – SATA & PCIe
  • RAID: “RAID 0, 1, 5, 10”
  • Wireless: –
  • LAN: 2.5GB LAN
  • Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • USB Ports Supported: “2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)
    6 x USB 3.2 Gen1 (2 at back, 4 at mid-board)
    6 x USB 2.0 (2 at back, 4 at mid-board)
    1 x USB 3.2 Gen2x2 connector Type-C at mid-board”
  • Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
    1 x HDMI
    1 x DisplayPort 1.4
    1 x USB 3.2 Gen2 Type-A
    1 x USB 3.2 Gen2 Type-C
    2 x USB 3.2 Gen1
    2 x USB 2.0
    1 x RJ-45 LAN
    HD Audio Jacks
  • Internal I/O Connectors: 1 x SPI TPM
    1 x Power LED and Speaker
    2 x RGB LED
    2 x Addressable LED
    1 x CPU Fan
    1 x CPU/Water Pump Fan
    4 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    1 x 8 pin 12V
    1 x 4 pin 12V
    1 x Front Audio
    1 x Thunderbolt AIC
  • .: 2 x USB 2.0
    2 x USB 3.2 Gen1
    1 x Front Panel Type C USB 3.2 Gen2x2 Header
  • Accessories: 2 x SATA Data Cables
    4 x Screws for M.2 Sockets
    1 x Standoff for M.2 Socket
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 1.9800 kg
  • Warranty: 3 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
  • #Hide#RGB Lighting: Out of the box RGB lighting

Out of stock

SKU: H570 STEEL LEGEND Category:
ASROCK

Description

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.


  • Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
  • 8 Phase Power Design
  • Supports DDR4 4800MHz (OC)
  • 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 3 x PCIe 3.0 x1
  • 1 x M.2 Key-E for WiFi
  • Graphics Output Options: HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  • 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4)
  • 2 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 1 x USB 3.2 Gen2x2 Front Type-C (20Gb/s)
  • Rear USB 3.2 Gen2 Type A+C (10Gb/s)
  • 6 x USB 3.2 Gen1 (2 x Rear, 4 x Front)
  • 6 x USB 2.0 (2 x Rear, 4 x Front)
  • Dragon 2.5 Gigabit LAN
  • ASRock Polychrome SYNC



8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.

Premium 50A Power Choke
Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.





Clever Access Memory

Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.





Base Frequency Boost (BFB) Technology

Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock's selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.





PCIe 4.0 High Speed M.2 Solution

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.





Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.





Reinforced Steel Slot [PCIe 4.0 Version]
  • The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
  • Extra anchor points
  • Stronger latch
  • Ensure signal stability
  • Make sure heavy graphics cards to be well-installed.





RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.





Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.





HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.





Super Alloy Motherboard

Premium 50A Power Choke
Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.





Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.






Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.





Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Additional information

Weight 1.98 kg
Brand

Asrock
MPN

H570 STEEL LEGEND

Brand

ASROCK
