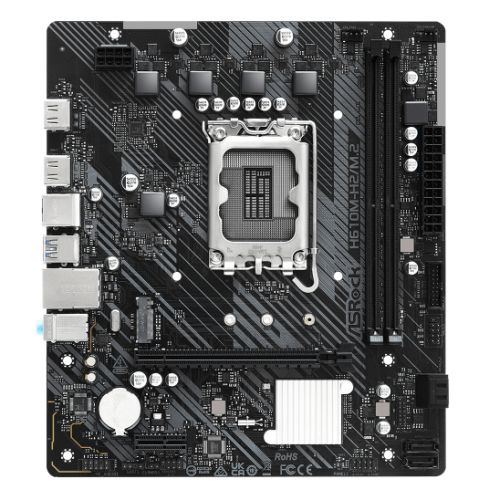

ASRock H610M-H2/M.2 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 2x HDMI Port

ASRock H610M-H2/M.2 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 2x HDMI Port

£69.99

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1700
  • Chipset: Intel H610
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR5 (Dual Channel)
    Supports Intel XMP 3.0
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 5600 MHz
  • Maximum Memory: 128GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types

  • Graphics Ports: 2 x HDMI 2.1
  • PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
    1 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280) – PCIe 3.0 x4
  • Wireless: –
  • LAN: GB LAN
  • USB Ports Supported: Rear:
    2 x USB 3.2 Gen1 Type-A
    4 x USB 2.0

    Front:
    2 x USB 3.2 Gen1 Type-A
    2 x USB 2.0

  • Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
    2 x HDMI
    2 x USB 3.2 Gen1 Type-A
    4 x USB 2.0
    1 x RJ-45 LAN
    HD Audio Jacks
  • Internal I/O Connectors: 1 x SPI TPM
    1 x Chassis Intrusion and Speaker
    1 x CPU Fan
    1 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    1 x 8 pin 12V
    1 x Front Panel Audio
    1 x USB 2.0
    1 x USB 3.2 Gen1
  • Accessories: 1 x User Manual
    1 x I/O Shield
    2 x SATA Data Cables
    1 x Screw for M.2 Socket
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 0.7100 kg
  • Warranty: 3 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN

In stock

EAN: 4710483946929 SKU: H610M-H2/M.2 Category:

Description

H610M-H2/M.2 D5


  • Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • 3+1+1 Phase Power Design
  • Supports DDR5 5600MHz*
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: 2 HDMI
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
  • 4 USB 3.2 Gen1 (2 Rear, 2 Front)
  • 6 USB 2.0 (4 Rear, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer





Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.



Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.



Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!



Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.



HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.



Additional information

Weight 0.65 kg
Brand

Asrock
MPN

H610M-H2/M.2
Socket

1700
CPU Compatibility

Intel 12th/13th/14th Gen
Chipset

Intel H610
Form Factor

Micro ATX
Memory Slots

DDR4 – 2 Slots
USB C

No
