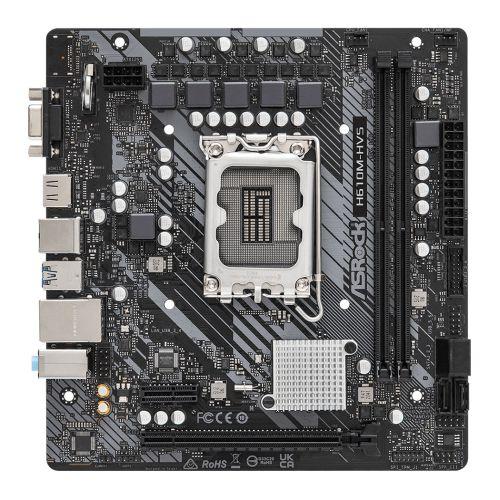

Asrock H610M-HVS, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, PCIe4

£88.26

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1700
  • Chipset: Intel H610
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 3200 MHz
  • Maximum Memory: 64GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types

  • Graphics Ports: 1 x VGA
    1 x HDMI
  • PCI/PCI Express: 1 x PCIe 4.0 x16
    1 x PCIe 3.0 3×1
  • Storage: 4 x SATA III
  • LAN: GB LAN
  • Audio: 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
  • USB Ports Supported: “4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
    6 x USB 2.0 (4 at back, 2 at mid-board)”
  • Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
    1 x D-Sub
    1 x HDMI
    2 x USB 3.2 Gen1
    4 x USB 2.0
    1 x RJ-45 LAN
    HD Audio Jacks
  • Internal I/O Connectors: 1 x SPI TPM
    1 x Chassis Intrusion and Speaker
    1 x CPU Fan
    1 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    1 x 8 pin 12V
    1 x Front Panel Audio
    1 x USB 2.0
    1 x USB 3.2 Gen1
  • Accessories: “Quick Installation Guide, Support CD, I/O Shield
    2 x SATA Data Cables”
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 0.7150 kg
  • Warranty: 2 Year Replacement Warranty
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN

10 in stock

SKU: ASMBH610MHVS Category: Tag:

H610M-HVS


  • Supports 12th Gen Intel® Core™ Processors (LGA1700)
  • 5 Phase Power Design
  • Supports DDR4 3200MHz
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, D-Sub
  • Realtek ALC887/897 7.1 CH HD Audio Codec
  • 4 SATA3
  • 4 USB 3.2 Gen1 (2 Rear, 2 Front)
  • 6 USB 2.0 (4 Rear, 2 Front)
  • Realtek Gigabit LAN

Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Premium Power Choke

Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB


Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB


High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.


Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
