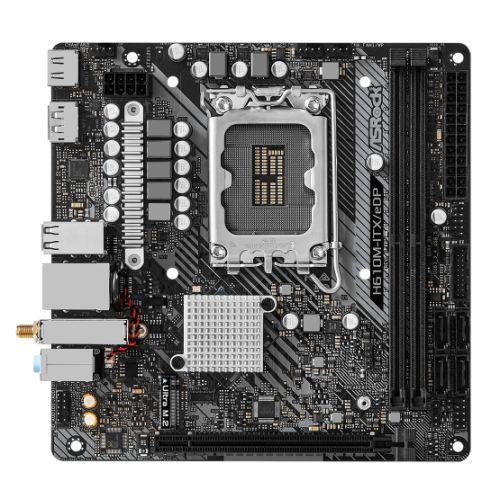

Asrock H610M ITX/eDP, Intel H610, 1700, Mini ITX, 2 DDR4, HDMI, DP, eDP, Wi-Fi, PCIe4, 1x M.2

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Mini ITX
• Socket: Intel 1700
• Chipset: Intel H610
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 3200 MHz
• Maximum Memory: 64GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types

• Graphics Ports: 1 x HDMI
  1 x DisplayPort 1.4
  1 x eDP 1.4
• PCI/PCI Express: 1 x PCIe 4.0 x16
• Storage: 4 x SATA III
  1 x M.2 (2280) – SATA & PCIe
• Wireless: 802.11ac WiFi Module
  Supports IEEE 802.11a/b/g/n/ac
  Supports Dual-Band (2.4/5 GHz)
  Supports high speed wireless connections up to 433Mbps
  Supports Bluetooth 5.1 + High speed class II
• LAN: GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• USB Ports Supported: “4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
  6 x USB 2.0 (4 at back, 2 at mid-board)”
• Back Panel I/O Ports: 2 x Antenna
  1 x HDMI
  1 x DisplayPort 1.4
  2 x USB 3.2 Gen1
  4 x USB 2.0
  1 x RJ-45 LAN
  HD Audio Jacks
• Internal I/O Connectors: 1 x eDP Signal
  1 x CPU Fan
  1 x Chassis Fan
  1 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x Front Audio
  1 x USB 2.0
  1 x USB 3.2 Gen1
• Accessories: “Quick Installation Guide, Support CD, I/O Shield
  2 x SATA Data Cables
  2 x ASRock WiFi 2.4/5 GHz Antennas
  1 x Screw for M.2 Socket”
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.8250 kg
• Warranty: 2 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
