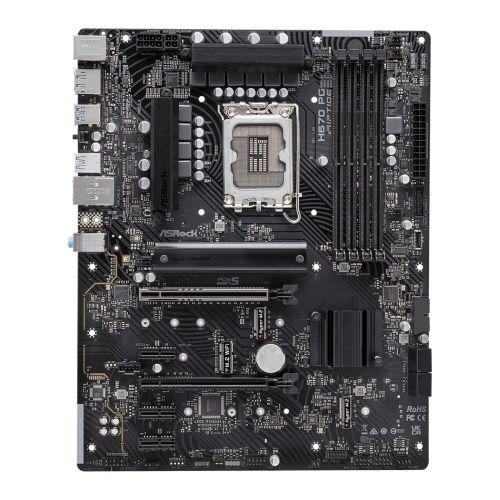

Asrock H670 PHANTOM GAMING RIPTIDE, Intel H670, 1700, ATX, 4 DDR4, HDMI, DP, PCIe5, 3x M.2

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1700
• Chipset: Intel H670
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 5333+(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types

• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• Multi-GPU Support: Supports AMD CrossFire
• PCI/PCI Express: 1 x PCIe 5.0 x16
  1 x PCIe 4.0 x16
  3 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2260/2280) – PCIe
  1 x M.2 (2242/2260/2280) – PCIe
  1 x M.2 (2260/2280/22110) – SATA & PCIe
• RAID: “Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices”
• Wireless: –
• LAN: GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• USB Ports Supported: “1 x USB 3.2 Gen2 Type-C (at back)
  1 x USB 3.2 Gen2 Type-A (at back)
  8 x USB 3.2 Gen1 Type-A (4 at back, 4 at mid-board)
  4 x USB 2.0 (2 at back, 2 at mid-board)
  1 x Front Panel Type-C USB 3.2 Gen2x2 Header”
• Back Panel I/O Ports: 3 x Antenna Mounting Points
  1 x PS/2 Mouse/Keyboard
  1 x HDMI
  1 x DisplayPort 1.4
  1 x USB 3.2 Gen2 Type-A
  1 x USB 3.2 Gen2 Type-C
  4 x USB 3.2 Gen1
  2 x USB 2.0
  1 x RJ-45 LAN
  1 x BIOS Flashback Button
  HD Audio Jacks
• Internal I/O Connectors: 1 x SPI TPM
  1 x Power LED and Speaker
  1 x RGB LED
  3 x Addressable LED
  1 x CPU Fan
  1 x CPU/Water Pump Fan
  4 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x 4 pin 12V
  1 x Front Panel Audio
  1 x Thunderbolt AIC
• .: 1 x USB 2.0
  2 x USB 3.2 Gen1
  1 x Front Panel Type-C USB 3.2 Gen2x2
• Accessories: Quick Installation Guide
  Support CD
  I/O Shield
  2 x SATA Data Cables
  4 x Screws for M.2 Sockets
  1 Standoff for M.2 Socket
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.4000 kg
• Warranty: 3 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
