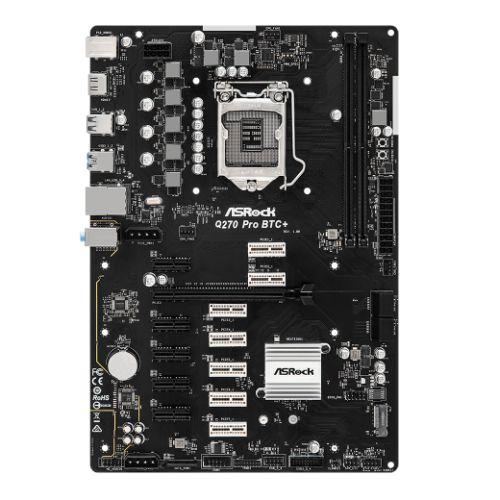

Asrock Q270 PRO BTC+ Mining Board, Intel Q270, 1151, ATX, DDR4, HDMI, 1x PCIe 3.0 x16, 12x PCIe 3.0 x1, M.2, Power On/Reset Button
- Motherboard Type: Mining
- Form Factor: ATX
- Socket: Intel 1151 – Sky/Kaby Lake
- Chipset: Intel Q270
- #Hide#DDR Type: DDR4
- CPU Support: Supports 7th & 6th Gen Intel Core i5/i3/Pentium/Celeron CPUs
Supports CPU up to 91W
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: 2400 / 2133 MHz
- Maximum Memory: 32GB
- Graphics: Supports Intel HD Graphics
- Graphics Ports: 1 x HDMI
- PCI/PCI Express: 1 x PCIe 3.0 x16 (PCIE2: x16 mode)
12 x PCIe 3.0 x1
- Storage: 4 x SATA III
1 x M.2 (2260/2280) – SATA
- RAID: “Supports RAID 0, 1, 5 and 10 “
- Wireless: –
- LAN: GB LAN
- Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- USB Ports Supported: “4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)
6 x USB 2.0 (4 at back, 2 at mid-board)”
- Back Panel I/O Ports: 1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x HDMI
4 x USB 2.0
2 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks
- Internal I/O Connectors: 1 x System Panel
1 x TPM
1 x COM Port
1 x Chassis Intrusion and Speaker
1 x CPU Fan
2 x Chassis Fan
1 x 24 pin ATX
1 x 8 pin 12V
2 x PCIe Power
1 x SATA Power
1 x Front Panel Audio
1 x USB 2.0
- .: 1 x USB 3.2 Gen1
1 x Power Button
1 x Reset Button
- Accessories: “Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket”
- Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.0600 kg
- Warranty: 2 Years Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
Out of stock
This motherboard is specifically designed for mining, the revolutionary digital crypto-currency that may be used anywhere in the world. The abundant onboard PCIe slots guarantee fast Crypto mining, while the additional power connectors provide advanced system stability while mining.
- Supports 7th and 6th Generation Intel Core™ i5/i3/Pentium® /Celeron® Processors
- Supports DDR4 2400/2133 MHz
- 1 PCIe 3.0 x16, 12 PCIe 3.0 x1
- Graphics Output: HDMI
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 4 SATA3, 1 M.2 (SATA3)
- 4 USB 3.2 Gen1 (2 Front, 2 Rear)
- Intel® Gigabit LAN
- Onboard Power On / Reset Button
M.2 For SSD
M.2 socket supports 2260/2280/22110 SATA3 mode M.2 SSD for up to 6Gb/s.
Smart PCIe State Detection
This motherboard has included a smart way to show the status of every graphics card. While the system is booting, the Power-On, Self-Test (POST) screen will show the status of the graphics cards that were installed on the motherboard.
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Power On / Reset Button
Power On & Off system with onboard button is a must for open frame mining.
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Q270 PRO BTC+
