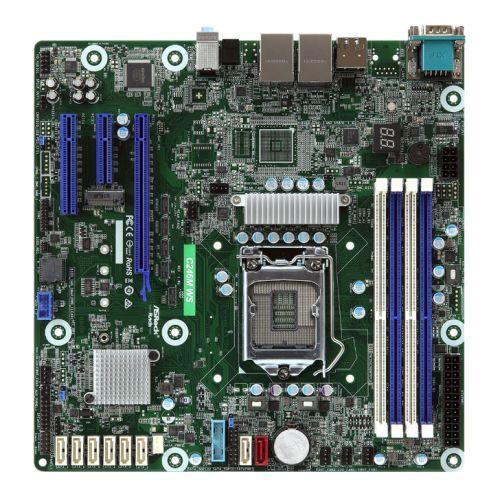

Asrock Rack C246M WS Server Board, Intel C246, 1151, Micro ATX, VGA, HDMI, DP, Dual GB LAN, Serial Port

Description

Specification

• Motherboard Type: Server / Workstation
• Form Factor: Micro ATX
• Socket: Intel 1151 – Coffee Lake
• Chipset: Intel C246
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: 2666/2400 MHz
• Maximum Memory: 64GB
• Graphics: Supports Intel HD Graphics
• Graphics Ports: 1 x VGA
  1 x HDMI
  1 x DisplayPort
• Multi-GPU Support: –
• PCI/PCI Express: “PCIe 3.0 x 16 – SLOT6: Gen3 x16 link, auto switch to x8 link if SLOT4 is occupied

  PCIe 3.0 x 8 – SLOT4: Gen3 x8 link

  PCIe 3.0 x 4 – SLOT5: Gen3 x4 link”

• Storage: 8 x SATA III
  1 x M.2 (2230/2242/2260/2280_ – SATA & PCIe
• Wireless: –
• LAN: Dual GB LAN
• USB Ports Supported: 4 x USB 3.1 Gen 2 Type-A (at back)
  2 x USB 3.1 Gen 1 (at mid-board)
  2 x USB 2.0 ports (at mid-board)
• Back Panel I/O Ports: 1 x HDMI
  1 x VGA Port
  4 x USB 3.1 Gen2 Port
  2 x RJ45
  1 x Serial Port
  1 x Display Port
  Audio Jacks
  1 x SPDIF
• Internal I/O Connectors: 1 x SATA DOM (share with M.2)
  1 x M.2
  1 x Auxiliary Panel
  1 x TR1
  1 x TPM
  1 x IPMI
  1 x Buzzer
  6 x Fan
  1x (24-pin) + 1x (8-pin) ATX Power
  1 x USB 3.1 (Gen1)
  1 x USB 2.0
  1 x Front Panel
• .: 1 x Speaker
  1 x Dr. Debug with LED
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.0700 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: GB LAN
