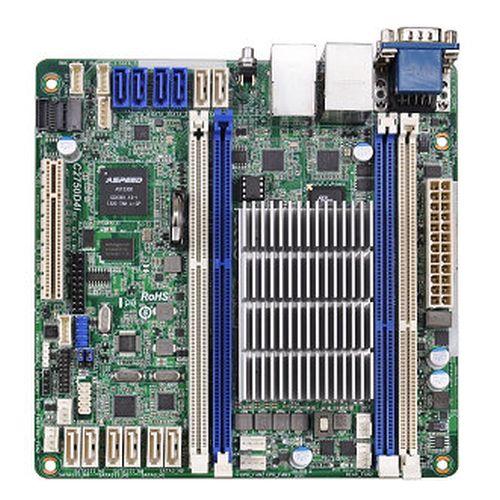

Asrock Rack C2750D4I Server Board, Integrated CPU, Mini ITX, Dual GB LAN, Serial Port, IPMI LAN

Description

Specification

• Motherboard Type: Server / Workstation
• Form Factor: Mini ITX
• Socket: Embedded CPU
• CPU: Integrated Intel Octa Core Avoton C2750
• #Hide#DDR Type: DDR3
• CPU Support: See manufacturers link (next to product images)
• RAM Technology: DDR3 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: 1600/1333 MHz
• Maximum Memory: 64GB
• Graphics: ASPEED AST2300
• Graphics Ports: 1 x VGA
• Multi-GPU Support: –
• PCI/PCI Express: 1 x PCIe 2.0 x 8
• PCI: –
• Storage: 8 x SATA III
• RAID: “RAID 0, 1, 10”
• Wireless: –
• LAN: Dual GB LAN & Dedicated IPMI LAN port
• Audio: –
• USB Ports Supported: “4 x USB 2.0 ports (2 at back, 2 at mid-board)”
• Back Panel I/O Ports: 1x D-sub
  2 x USB 2.0
  2 x GB Lan
  1 x RJ45 Dedicated IPMI LAN port
  1 x Serial Port
  1 x UID Button/UID LED
• Internal I/O Connectors: 1 x Auxiliary Panel
  1 x IPMB
  6 x Fan
  1 x ATX Power
  1 x USB 2.0 Connector
  1 x Front Panel
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.9490 kg
• Warranty: 3 Years
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: GB LAN
