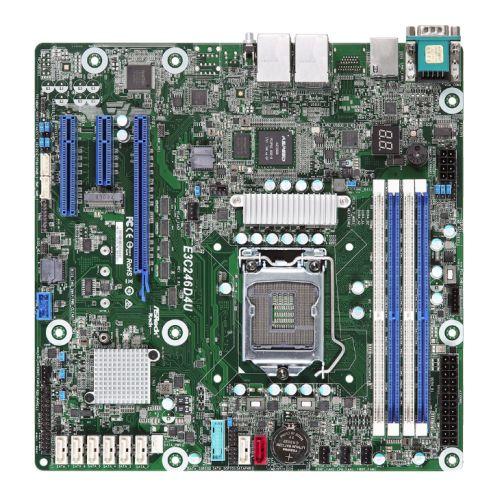

Asrock Rack E3C246D4U Server Board, Intel C246, 1151, Micro ATX, VGA, Dual GB LAN, IPMI LAN, M.2, Serial Port

Description

Specification

• Motherboard Type: Server / Workstation
• Form Factor: Micro ATX
• Socket: Intel 1151 – Coffee Lake
• Chipset: Intel C246
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Non-ECC UDIMM
  1600/1866/2133/2400/2666 MHz

  ECC UDIMM:
  1600/1866/2133/2400/2666 MHz

• Maximum Memory: 32GB
• Graphics: ASPEED AST2500
  DDR4 32MB
• Graphics Ports: 1 x VGA
• Multi-GPU Support: –
• PCI/PCI Express: “PCIe 3.0 x 16 – Slot 6: Gen3 x16 link, auto switch to x8 link if Slot 4 is occupied

  PCIe 3.0 x 8 – Slot 4: Gen3 x8 link

  PCIe 3.0 x 4 – Slot 5: Gen3 x4 link”

• Storage: 8 x SATA III
  1 x M.2 (2230/2242/2260/2280) – SATA & PCIe
• Wireless: –
• LAN: Dual GB LAN & Dedicated IPMI LAN port
• Audio: –
• USB Ports Supported: “2 x USB 3.1 Gen 2 Type-A (at back)
  4 x USB 3.1 Gen 1 (2 at back, 2 at mid-board)
  2 x USB 2.0 ports (at back)”
• Back Panel I/O Ports: “1 x VGA
  4 x USB 3.1 Gen2 (Gen2), 2(Gen1)
  2 x RJ45 Gigabit Ethernet LAN
  1 x RJ45 Dedicated IPMI LAN
  1 x Serial Port
  1 x UID Button/UID LED”
• Internal I/O Connectors: 1 x SATA DOM (shared with M.2)
  1 x M.2
  1 x Auxiliary Panel
  1 x TR1
  1 x TPM
  1 x IPMB
  1 x Buzzer
  6 x Fan (1CPU/3Front/2Rear)
  1 x ATX 1x (24-pin) + 1x (8-pin)
  1 x USB 3.1 (Gen1)
  1 x USB 2.0
  1 x NMI
• .: 1 x Front Panel
  1 x Speaker (4pin)
  1 x BMC_SMB
  2 x SGPIO
  1 x ME/SPS Recovery
  1 x Clear CMOS
  1 x PSU SMB
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.9020 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: GB LAN
