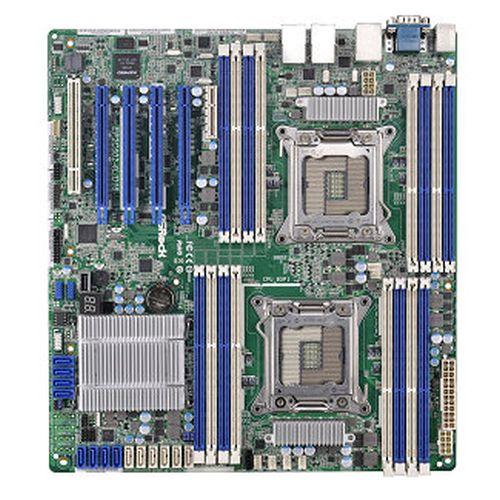

Asrock Rack EP2C602-4L/D16 Server Board, Intel C602, 2011, SSI EEB, Quad GB LAN, IPMI LAN, Serial Port

Description

Specification

• Motherboard Type: Server / Workstation
• Form Factor: SSI EEB
• Socket: Intel 2011
• Chipset: Intel C602
• #Hide#DDR Type: DDR3
• CPU Support: Click here for CPU support
• RAM Technology: DDR3 (Quad Channel)
• RAM Slots: 16 x DIMM
• RAM Speeds: 1866/1600/1333/1066 MHz
• Maximum Memory: 512GB
• Graphics: ASPEED AST2300
• Graphics Ports: 1 x VGA
• Multi-GPU Support: –
• PCI/PCI Express: 2 x PCIe2/PCIe5 x16 mode
  1 x PCIe3 x0/x8 mode
  1 x PCIe4 x16/x8 mode
• PCI: –
• Storage: 6 x SATA III
• RAID: “Marvell SE9230: RAID 0, 1, 10, NCQ, AHCI and Hot Plug
  Intel C602: RAID 0, 1, 5, 10 and Intel Rapid Storage 3.0″
• Wireless: –
• LAN: Quad GB LAN & Dedicated IPMI LAN port
• Audio: –
• USB Ports Supported: “6 x USB 2.0 ports (2 at back, 4 at mid-board)
  1 x Type A USB 2.0 Port”
• Back Panel I/O Ports: 2 x PS/2 KB/Mouse
  1 x D-Sub
  2 x USB 2.0 Port
  4 x Lan Port
  1 x RJ45 Dedicated IPMI LAN port
  1 x Serial Port
• Internal I/O Connectors: 1 x COM Port Header
  1 x Auxiliary Panel
  1 x TPM
  1 x Thermal Sensor
  1 x IPMB
  1 x Buzzer
  8 x Fan
  1 x ATX Power
  2 x USB 2.0 Header
  1 x Type A USB 2.0 Port
  1 x Front Panel
  1 x Speaker
• .: 1 x Dr. Debug with LED
• Additional Features: See manufacturers link (next to product images)
• Package Type: Retail
• Package Weight: 2.3300 kg
• Warranty: 3 Years
• #Hide#No. LAN Ports: 4 x LAN
• #Hide#Max LAN Speed: GB LAN
