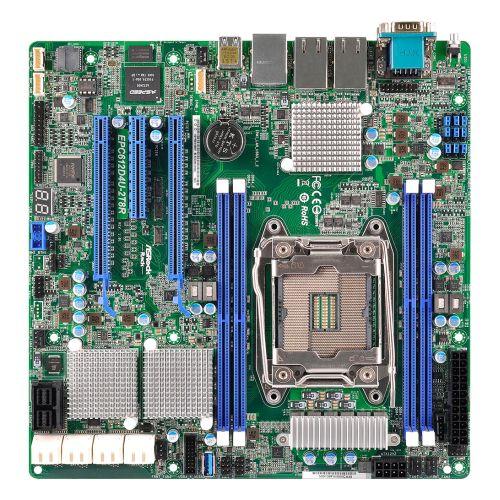

Asrock Rack EPC612D4U Server Board, Intel C612, 2011, Micro ATX, Dual GB LAN, IPMI LAN, Serial Port

Description

Specification

• Motherboard Type: Server / Workstation
• Form Factor: Micro ATX
• Socket: Intel 2011
• Chipset: Intel C612 PCH
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 ECC Registered (Quad Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: 2133/1866/1600 MHz
• Maximum Memory: 64GB
• Graphics: ASPEED AST2400
• Graphics Ports: 1 x VGA
• Multi-GPU Support: –
• PCI/PCI Express: 2 x PCIe 3.0 x 16
  1 x PCIe 3.0 x 8
• PCI: –
• Storage: 8 x SATA III
• RAID: “RAID 0, 1, 5, 10”
• Wireless: –
• LAN: Dual GB LAN & Dedicated IPMI LAN port
• USB Ports Supported: “4 x USB 3.0 ports (2 at back, 2 at mid-board)
  4 x USB 2.0 ports (2 at back, 2 at mid-board)
  1 x Type A USB 2.0 Port”
• Back Panel I/O Ports: 1 x D-Sub
  2 x USB 2.0 Port
  2 x USB 3.0 Port
  2 x Lan Port
  1 x RJ45 Dedicated IPMI LAN port
  1 x Serial Port
  1 x UID Button/UID LED
• Internal I/O Connectors: “1 x Auxiliary Panel
  1 x TPM
  1 x IPMB
  1 x CPU Fan, 5x system Fan
  1 x USB 3.0 Header
  1 x USB 2.0 Header
  1 x Type A USB 2.0 Port
  2 x BMC_SMBUS”
• Additional Features: See manufacturers link (next to product images)
• Package Type: Retail
• Package Weight: 1.3850 kg
• Warranty: 3 Years
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: GB LAN
