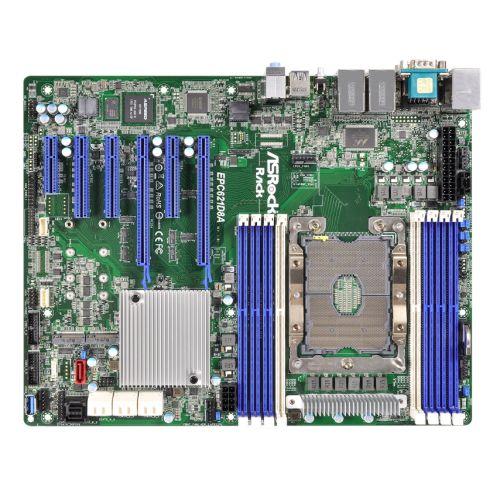

Asrock Rack EPC621D8A Server Board, Intel C621, S 3647, ATX, Supports Scalable CPUs, VGA, 13 x SATA, Quad LAN, IPMI

Description

Specification

• Motherboard Type: Server / Workstation
• Form Factor: ATX
• Socket: Intel 3647
• Chipset: Intel C621
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Six Channel)
• RAM Slots: 8 x DIMM
• RAM Speeds: 2933/2666/2400/2133 MHz
  RDIMM/LR DIMM
• Graphics: ASPEED AST2500
  DDR4 256MB
• Graphics Ports: 1 x VGA
• Multi-GPU Support: –
• PCI/PCI Express: “PCIe 3.0 x 16 – 2 slots (slot4: share with slot3, X16/x8, Slot6: share with slot5, X16/x8)

  PCIe 3.0 x 8 – 3 slots (slot2: x8, slot3: share with slot3, X0/x8, Slot5: share with slot6, X0/x8)

  PCIe 3.0 x 4 – 1 slot”

• Storage: 13 x SATA III
  2 x M.2 (up to 2280) – SATA & PCIe
• Wireless: –
• LAN: Quad GB LAN & Dedicated IPMI LAN port
• Audio: Realtek ALC1150
• USB Ports Supported: “8 x USB 3.1 Gen 1 (4 at back, 4 at mid-board)
  1 x USB 3.1 Gen 1 Type-A port at mid-board”
• Back Panel I/O Ports: 1 x VGA
  4 x USB 3.1 Gen1
  4+1 RJ45 Gigabit Ethernet LAN
  1 x Serial Port
  Audio – 3 hole
• Internal I/O Connectors: “1 x SATA DOM
  2 x M.2
  1 x Auxiliary Panel
  1 x TPM
  1 x IPMB
  1 x Buzzer
  1 x Fan
  1 x CPU Fan
  4 x system Fan (3 front, 1 rear)
  1 x ATX 1 (24-pin) + 1 (8-pin)
  2 x USB 3.1 (Gen1)
  1 x Type A USB 3.1 (Gen1) Port”
• Additional Features: See Overview
• Package Weight: 1.6640 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 4 x LAN
• #Hide#Max LAN Speed: GB LAN
• #Hide#RGB Lighting: No
