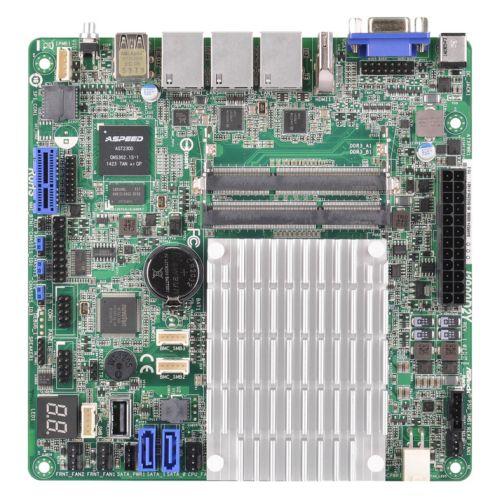

Asrock Rack J1900D2Y Server Board, Integrated CPU, Mini ITX, Dual GB LAN, USB3, IPMI LAN

Description

Specification

• Motherboard Type: Server / Workstation
• Form Factor: Mini ITX
• Socket: Embedded CPU
• CPU: Integrated Intel Quad-Core J1900 (2GHz)
• CPU Support: Integrated CPU
• RAM Technology: DDR3/DDR3L SO-DIMM (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: 1333/1066 MHz
• Maximum Memory: 16GB
• Graphics: ASPEED AST2300
  DDR3 16MB
• Graphics Ports: 1 x VGA
  1 x HDMI
• Multi-GPU Support: –
• PCI/PCI Express: 1 x PCIe 2.0 x 1
• PCI: –
• Storage: 2 x SATA II
• RAID: –
• Wireless: –
• LAN: Dual GB LAN & Dedicated IPMI LAN port
• USB Ports Supported: “1 x USB 3.0 (at rear)
  2 x USB 2.0 ports (1 at back, 1 at mid-board)”
• Back Panel I/O Ports: 1 x HDMI
  1 x VGA Port
  1 x USB 2.0 Port
  1 x USB 3.0 Port
  RJ45: 2 + 1 (IPMI)
  1 x UID Button/UID LED
  1 x DC Jack
• Internal I/O Connectors: 1 x Auxiliary Panel
  1 x TPM
  1 x IPMB
  1 x Buzzer
  4 x 4-pin Fan
  1 x ATX Power
  1 x Type A USB 2.0 Port
  1 x PSU SMB
  1 x Speaker
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.7840 kg
• Warranty: 3 Years
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: GB LAN
