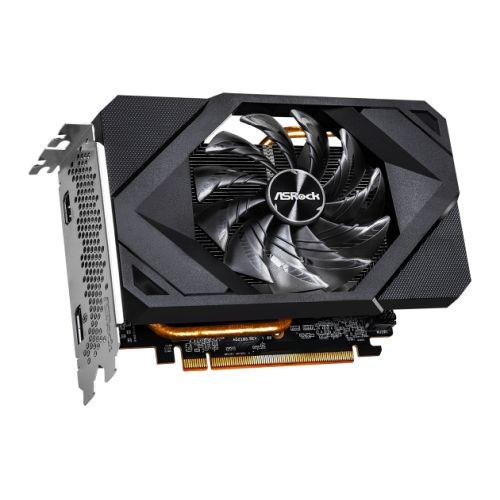

Asrock RX6500 XT Challenger ITX 4GB, 4GB DDR6, PCIe4, HDMI, DP, 2815MHz Clock, Compact Design

Asrock RX6500 XT Challenger ITX 4GB, 4GB DDR6, PCIe4, HDMI, DP, 2815MHz Clock, Compact Design

£179.99

Description

Specification

  • Chipset Manufacturer: AMD
  • Interface: PCI Express 4.0
  • Graphics Chipset: AMD RX 6500 XT
  • Memory Size: 4GB
  • Memory Type: DDR6
  • Memory Interface: 64-bit
  • Core Clock: Boost Clock: Up to 2815 MHz
    Game Clock: Up to 2610 MHz
    Base Clock: 2310 MHz
  • Memory Clock: 18 Gbps
  • CUDA Cores / Stream Processors: 1024 Stream Processors
  • Outputs: 1 x HDMI 2.1 VRR
    1 x DisplayPort 1.4 with DSC
  • HDCP Support: Yes
  • Resolution: Digital Max Resolution: 7680 x 4320
  • DirectX Support: DirectX 12 Ultimate
  • Max Display Support: 2
  • Cooling: Single Fan Design
    Striped Axial Fan
    0dB Silent Cooling
  • PSU Requirements: 400W or greater recommended
  • Connectors Required: 1 x 8-pin PCIe power
  • Additional Features: See Overview
  • Dimensions: 179 x 124 x 40 mm
  • Slot Size: 2 Slot
  • Accessories: 1 x Quick Installation Guide
  • Package Type: Retail
  • #Hide#HDMI: Yes (HDMI)
  • #Hide#DisplayPort: Yes (DisplayPort)
  • Package Weight: 0.6400 kg
  • Warranty: 2 Years

Out of stock

SKU: 90-GA3BZZ-00UANF Category:
ASROCK

Description

AMD Radeon RX 6500 XT Challenger ITX 4GB


  • Boost Clock: Up to 2815 MHz / 18 Gbps
  • Game Clock: Up to 2610 MHz / 18 Gbps
  • Base Clock: 2310 MHz / 18 Gbps
  • 6nm AMD Radeon™ RX 6500 XT
  • 4GB GDDR6
  • AMD RDNA™ 2 Architecture
  • DirectX 12 Ultimate
  • PCI® Express 4.0 Support
  • 1 x 8-pin Power Connector
  • 1 x DisplayPort™ 1.4 with DSC / 1 x HDMI™ 2.1 VRR
  • Single Fan Design
  • Striped Axial Fan
  • 0dB Silent Cooling
  • Super Alloy Graphics Card
  • ASRock Tweak 2.0
  • 8K Resolution Support
  • AMD FidelityFX™ Super Resolution
  • Hardware Raytracing
Single Fan Design
Optimized Cooling Efficiency.
Single fan that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design..

Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Diversion Holes
Maximize the Thermal Capacity.
The diversion holes on front cover help to quickly remove the heat from the small thermal module.

Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.

Premium 90A Power Choke


Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.

2oz Copper PCB


Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

Matte Black PCB


A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.

High Density Glass Fabric PCB


High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

ASRock Tweak 2.0
Pro and Easy-to-Use Tuning Utility.
Provides the smart fan speed control and instant performance tweaking.

8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.

PCI® Express 4.0 Support
This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.

Intense 1080p Performance
AMD Radeon™ RX 6500 XT graphics cards deliver serious 1080p gaming and impressive frame rates. The power of AMD RDNA™ 2 architecture is unleashed with up to 16 powerful graphics compute units, coupled with all ultra-high bandwidth AMD Infinity Cache™, and up to 4GB of dedicated GDDR6 memory.

Vivid Visuals
With immersive gaming technologies and support for DirectX® 12 Ultimate, AMD Radeon™ RX 6500 XT graphics cards draw you into the action. Experience gaming with realistic lighting, shadows, and reflections along with rich detail, thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX™ technology features, optimized for AMD RDNA™ 2 architecture.

Get A Boost In Frames
For Your Games
AMD FidelityFX™ Super Resolution (FSR) technology boosts your frame rates by 2.4X on average across select FidelityFX Super Resolution supported games2 with high-quality, high-resolution gaming experiences delivered by AMD Radeon™ RX 6000 Series graphics cards. Optimize your gaming experience between four presets, ranging from best visual fidelity to maximum performance.

The Best Gaming Experience
For The Best Gaming OS
AMD Radeon™ graphics with Windows 11 enables the ultimate gaming experience through superior graphics, amazing performance, optimized security features. With support for DirectX® 12 Ultimate, Auto HDR, AMD Radeon graphics, and Radeon™ software all stand ready to supercharge your gaming experience with Windows 11.



Additional information

Weight 0.64 kg
Brand

Asrock
MPN

90-GA3BZZ-00UANF

Brand

ASROCK
