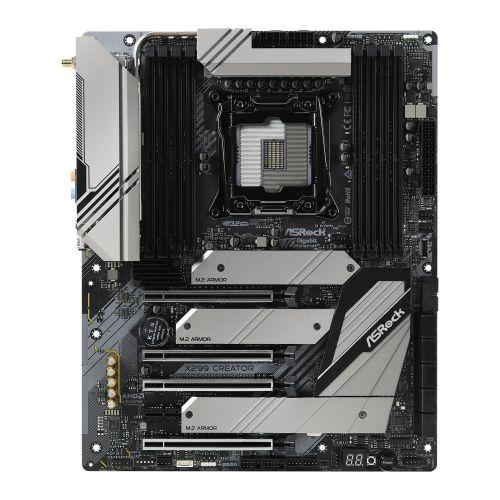

Asrock X299 CREATOR, Intel X299, 2066, ATX, DDR4, NVLink, SLI/XFire, Wi-Fi, Dual LAN (1 x 10GB), TB 3 Type-C, 3x M.2

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 2066
• Chipset: Intel X299
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Quad Channel)
• RAM Slots: 8 x DIMM
• RAM Speeds: 4200+(OC)* / 4000(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 MHz
• Maximum Memory: 256GB
• Graphics: –
• Graphics Ports: –
• Multi-GPU Support: Supports AMD 3-Way CrossFireX
  Supports NVIDIA 3-Way SLI
  Supports NVIDIA NVLink
  Support NVIDIA SLI w/ NVIDIA Quadro cards
• PCI/PCI Express: 4 x PCIe 3.0 x16
  1 x PCIe 3.0 x1
• Storage: 10 x SATA III
  2 x M.2 Socket (2242/2260/2280) – PCIe
  1 x M.2 Socket (2242/2260/2280/22110) – SATA & PCIe
• RAID: “RAID 0, 1, 5, 10”
• Wireless: Intel 802.11ax WiFi Module
  Supports IEEE 802.11a/b/g/n/ax
  Supports Dual-Band (2.4/5 GHz)
  Supports wireless connections up to 2.4Gbps
  2 antennas – 2 (Transmit) x 2 (Receive) diversity tech
  Supports Bluetooth 5.0
  Supports MU-MIMO
• LAN: 10GB LAN & GB LAN
• Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
• USB Ports Supported: “2 x USB 3.2 Gen2 Thunderbolt 3 Type-C (at back)
  8 x USB 3.2 Gen 1 (4 at back, 2 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)
  1 x Front Panel Type- C USB 3.2 Gen2 Header”
• Back Panel I/O Ports: 2 x Antenna
  1 x Optical SPDIF Out
  2 x USB 2.0
  2 x USB 3.2 Gen2 Thunderbolt 3 Type-C
  2 x Mini DisplayPort Input
  4 x USB 3.2 Gen1
  2 x RJ-45 LAN
  1 x Clear CMOS Button
  HD Audio Jacks
• Internal I/O Connectors: 1 x Virtual RAID On CPU
  1 x SPI TPM
  1 x Power LED and Speaker
  2 x RGB LED
  2 x Addressable LED
  1 x CPU Fan
  1 x CPU/Water Pump Fan
  5 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  2 x 8 pin 12V
  1 x Front Audio
  2 x USB 2.0
• .: 1 x USB 3.2 Gen1
  1 x Front Panel Type- C USB 3.2 Gen2
  1 x Dr. Debug with LED
  1 x Power Button with LED
  1 x Reset Button
• Accessories: 4 x SATA Data Cables
  1 x ASRock SLI_HB_Bridge_2S Card
  1 x ASRock WiFi 2.4/5 GHz Antenna
  3 x Screws for M.2 Sockets
  3 x Standoffs for M.2 Sockets
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 2.9780 kg
• Warranty: 3 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: 10GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
