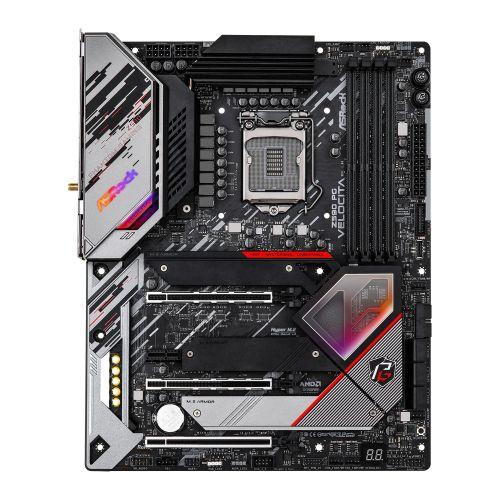

Asrock Z590 PG VELOCITA, Intel Z590, 1200, ATX, 4 DDR4, XFire, HDMI, DP, AX Wi-Fi, GB & 2.5G LAN, RGB, 3x M.2

Asrock Z590 PG VELOCITA, Intel Z590, 1200, ATX, 4 DDR4, XFire, HDMI, DP, AX Wi-Fi, GB & 2.5G LAN, RGB, 3x M.2

£335.99

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: ATX
  • Socket: Intel 1200 – Rocket Lake
  • Chipset: Intel Z590
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 4 x DIMM
  • RAM Speeds: up to 4800+(OC)
  • Maximum Memory: 128GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types

  • Graphics Ports: 1 x HDMI
    1 x DisplayPort 1.4
  • Multi-GPU Support: Supports AMD Quad CrossFireX
  • PCI/PCI Express: 2 x PCIe 4.0 x16
    1 x PCIe 3.0 x16
    1 x PCIe 3.0 x1
  • Storage: 6 x SATA III
    1 x M.2 (2260/2280) – PCIe
    1 x M.2 (2260/2280) – SATA & PCIe
    1 x M.2 (2260/2280/22110) – SATA & PCIe
  • RAID: “RAID 0, 1, 5, 10”
  • Wireless: Killer AX1675x 802.11ax Wi-Fi 6E Module
    Supports IEEE 802.11a/b/g/n/ax
    Supports Dual-Band 2×2 160MHz (extended 6GHz band support)
    2 antennas – 2 (Transmit) x 2 (Receive) diversity technology
    Supports Bluetooth 5.2
    Supports MU-MIMO
    Supports Killer LAN Software
    Supports Killer DoubleShot Pro
  • LAN: 2.5GB LAN & GB LAN
  • Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
  • USB Ports Supported: “2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)
    10 x USB 3.2 Gen1 (6 at back, 4 at mid-board)
    4 x USB 2.0 (2 at back, 2 at mid-board)
    1 x USB 3.2 Gen2x2 connector Type-C at mid-board”
  • Back Panel I/O Ports: 2 x Antenna
    1 x HDMI
    1 x DisplayPort 1.4
    1 x Optical SPDIF Out
    1 x USB 3.2 Gen2 Type-A
    1 x USB 3.2 Gen2 Type-C
    2 x USB 3.2 Gen1 Type-A
    4 x USB 3.2 Gen1 Type-A
    2 x USB 2.0
    2 x RJ-45 LAN
    HD Audio Jacks
  • Internal I/O Connectors: 1 x SPI TPM
    1 x Power LED and Speaker
    2 x RGB LED
    2 x Addressable LED
    1 x CPU Fan
    1 x CPU/Water Pump Fan
    5 x Chassis/Water Pump Fan
    1 x VRM Fan
    1 x 24 pin ATX
    2 x 8 pin 12V
    1 x Front Audio
    1 x Thunderbolt AIC
  • .: 1 x USB 2.0
    2 x USB 3.2 Gen1
    1 x Front Panel Type C USB 3.2 Gen2x2 Header
    1 x Clear CMOS Button
    1 x Dr. Debug with LED
    1 x Power Button with LED
    1 x Reset Button with LED
  • Accessories: 4 x SATA Data Cables
    1 x Graphics Card Holder
    1 x Wireless Dongle USB Bracket
    1 x 3010 Cooling Fan w/ Bracket and Screw Package
    1 x 4010 Cooling Fan Bracket and Screw Package
    2 x ASRock WiFi 2.4/5/6 GHz Antennas
    3 x Screws for M.2 Sockets
    3 x Standoffs for M.2 Sockets
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 2.6000 kg
  • Warranty: 3 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 2 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
  • #Hide#Wi-Fi: Yes (Wi-Fi)
  • #Hide#RGB Lighting: Out of the box RGB lighting

Out of stock

SKU: Z590 PG VELOCITA Category:
ASROCK

Description

PG Velocita is a brand new high end product line under the Phantom Gaming family, the PG Velocita motherboard series packed full with uncompromised performance as well as relentless appearance. “Velocita” is Italian for “Velocity”, destined to give a fast and unbeatable gaming experience to the gamers!


  • Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
  • 14 Phase Dr.MOS Power Design
  • Supports DDR4 4800MHz (OC)
  • 2 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
  • Graphics Output Options: HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
  • 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4)
  • 2 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 1 x USB 3.2 Gen2x2 Front Type-C (20Gb/s)
  • Rear USB 3.2 Gen2 Type A+C (10Gb/s)
  • 10 x USB 3.2 Gen1 (6 x Rear, 4 x Front)
  • Killer E3100G 2.5G LAN, Intel® Gigabit LAN
  • Killer AX1675x 802.11ax(WiFi 6E) + BT 5.2
  • CPU Direct Source LAN (Patent Pending)
  • Lightning Gaming Ports (Patent Pending)
  • ASRock Graphics Card Holder (Patent Pending)



PCIe 4.0 High Speed M.2 Solution

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.





Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.





Personalized MOS FAN

Optimized FAN design for the better heat disspation. You can choose bundled 3CM high performance fan, or upgrade to your own 4CM fan for better cooling and silence performance.





ASRock Graphics Card Holder

Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.





Lightning Gaming Ports

Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that allow gamers to connect the high speed mice/keyboard with the lowest jitter latency and win the best performance!





Direct Source On

True gaming focused design! Unlike most so called gaming motherboards that are only decorated with standard design, the Killer E3100 2.5G LAN chip architecture on Z590 PG Velocita can be chosen to be controlled directly by the CPU. Hence, it can benefit a new gaming experience in lower latency, faster internet network and the overall performance a huge boost.





Direct Source Off (Default Setting)

The default setting is Direct Source disabled, the LAN chip is accessed via chipset through DMI and PCIe lanes. It brings longer route, adds latency and sacrifices the internet performance.





Killer™ Ethernet E3100 + Wi-Fi 6E AX1675x

The Killer Ethernet controller is designed specically for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet & WiFi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.





Killer DoubleShot™ Pro

Killer DoubleShot Pro allows the use of both the Killer Wireless and Killer Ethernet interfaces work at the same time which will give the end user max throughput as high as 4.9 Gbps, it automatically utilizes the fastest network connection for high priority traffic, this ensures the highest priority traffic will always be put on the fastest and most reliable link.





USB 3.2 Gen2x2 Type-C

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.





Wireless Dongle USB Bracket

Allow ASRock to be your most trustworthy ally, providing the anti-interference hardware. Place your wireless dongle as far away as possible to prevent the noise impact between the devices on 2.4GHz data spectrum, this Wireless Dongle USB Bracket is packed with selected motherboards to aid you on building your PC without interference.





RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.





2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!





Reinforced Steel Slot [PCIe 4.0 Version]

The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
  • Extra anchor points
  • Stronger latch
  • Ensure signal stability
  • Make sure heavy graphics cards to be well-installed.





Flexible Integrated I/O Shield

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.





Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.





Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.





Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.





Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Additional information

Weight 2.6 kg
Brand

ASROCK
MPN

Z590 PG VELOCITA
