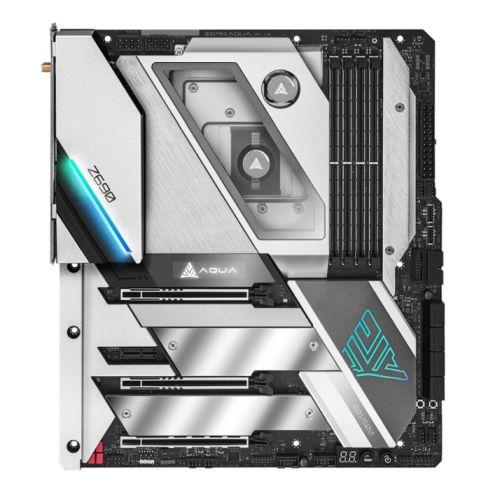

Asrock Z690 AQUA, Intel Z690, 1700, EATX, 4 DDR5, HDMI, 2 Thunderbolt, Wi-Fi, 10G & 2.5G LAN, PCIe5, RGB, 3x M.2

Asrock Z690 AQUA, Intel Z690, 1700, EATX, 4 DDR5, HDMI, 2 Thunderbolt, Wi-Fi, 10G & 2.5G LAN, PCIe5, RGB, 3x M.2

£378.99

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Extended ATX
  • Socket: Intel 1700
  • Chipset: Intel Z690
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR5 (Dual Channel)
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 6400+(OC)
  • Maximum Memory: 128GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types

  • Graphics Ports: 1 x HDMI
    2 x USB4 Thunderbolt 4 Type-C
  • Multi-GPU Support: Supports AMD CrossFire
  • PCI/PCI Express: 3 x PCIe 5.0 x16
    1 x PCIe 3.0 x1
  • Storage: 8 x SATA III
    1 x M.2 (2260/2280) – PCIe
    1 x M.2 (2260/2280) – SATA & PCIe
    1 x M.2 (2242/2260/2280/22110) – SATA & PCIe
  • RAID: “Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices”
  • Wireless: 802.11ax Wi-Fi 6E Module
    Supports IEEE 802.11a/b/g/n/ax
    Supports Dual-Band 2×2 160MHz w/ extended 6GHz band support
    2 antennas – 2 (Transmit) x 2 (Receive) diversity technology
    Supports Bluetooth + High speed class II
    Supports MU-MIMO
    Supports Killer LAN Software
    Supports Killer DoubleShot Pro
  • LAN: 10GB LAN & 2.5GB LAN
  • Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
  • USB Ports Supported: “2 x Thunderbolt 4 USB Type-C (at back)
    2 x USB 3.2 Gen2 Type-A (at back)
    8 x USB 3.2 Gen1 Type-A (4 at back, 4 at mid-board)
    4 x USB 2.0 (at mid-board)
    2 x Front Panel Type C USB 3.2 Gen2x2 Headers”
  • Back Panel I/O Ports: 2 x Antenna
    1 x HDMI
    2 x DisplayPort 1.4 Input
    1 x Optical SPDIF Out
    2 x USB 3.2 Gen2 Type-A
    2 x USB4 Thunderbolt 4 Type-C
    4 x USB 3.2 Gen1 Type-A
    2 x RJ-45 LAN
    1 x Clear CMOS Button
    1 x BIOS Flashback Button
    HD Audio Jacks
  • Internal I/O Connectors: 1 x SPI TPM
    1 x Power LED and Speaker
    1 x RGB LED
    3 x Addressable LED
    1 x CPU Fan
    1 x CPU/Water Pump Fan
    6 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    2 x 8 pin 12V
    1 x Front Panel Audio
    2 x USB 2.0
    2 x USB 3.2 Gen1
  • .: 2 x Front Panel Type C USB 3.2 Gen2x2
    1 x Dr. Debug with LED
    1 x Power Button with LED
    1 x Reset Button with LED
    1 x Retry Button
    1 x Safe Boot Button
  • Accessories: 4 x SATA Data Cables
    1 x Digital Leak Detector
    1 x Wireless Dongle USB Bracket
    1 x ASRock WiFi 2.4/5/6 GHz Antenna
    1 x Right Angle Mini DisplayPort to DisplayPort Cable
    1 x Thermal Compound
    9 x Spare Thermal Pads
    4 x Spare Screws for MOS
    4 x Spare Screws for CPU Sockets
    3 x Screws for M.2 Sockets
  • Additional Features: See Overview / Video
  • Package Type: Retail
  • Package Weight: 6.5000 kg
  • Warranty: 3 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 2 x LAN
  • #Hide#Max LAN Speed: 10GB LAN
  • #Hide#Wi-Fi: Yes (Wi-Fi)
  • #Hide#RGB Lighting: Out of the box RGB lighting

Out of stock

SKU: Z690 AQUA Category:
ASROCK

Description

Z690 AQUA


  • Supports 12th Gen Intel® Core™ Processors (LGA1700)
  • 20 Phase SPS Dr.MOS Power Design
  • Supports DDR5 6400MHz (OC)*
  • 2 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, 2 Thunderbolt™ Type-C**
  • Realtek ALC1220 7.1 CH HD Audio Codec, ESS SABRE 9218 DAC,
  • WIMA Audio Caps, Nahimic Audio
  • 8 SATA3
  • 1 Hyper M.2 (PCIe Gen4 x4)
  • 2 Hyper M.2 (PCIe Gen4 x4 & SATA3)
  • 2 Thunderbolt™ 4/USB4 Type-C
  • 2 USB 3.2 Gen2x2 Front Type-C
  • 2 Rear USB 3.2 Gen2 Type A
  • 8 USB 3.2 Gen1 (4 Rear, 4 Front)
  • AQUANTIA® / Marvell 10G LAN, Killer E3100 2.5G LAN
  • Killer AX1675 802.11ax (WiFi 6E) + Bluetooth
  • Status OLED + Polychrome SYNC

AQUA, New Beginning!
How to make AQUA better? It’s a topic we’ve been working on for years. The monoblock efficiency is enhanced by optimizing the best combination of fin thickness, spacing as well as water passage, on top of that, ultra-high heat conductive thermal grease is used to guarantee Z690 AQUA performs best in every single way. Lastly, the prestige and superior Z690 AQUA motherboard will be limited production to only 500 units.




AQUA Cooling Armor
Elegant but functional is the main aspect of this unique motherboard, the custom AQUA water cooling block is designed to dissipate the heat of the CPU, VRM as efficiently as possible, it also dazzles with sophisticated but eye-catching RGB LED lighting effects design that brightens the water passage to give a more classy look.




OLED Display
An OLED display was added to give a cleaner and informative way to express the status of the motherboard, the content can also be configured in the BIOS for more user friendly application.





DDR5 Memory with Protection Circuit
The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.




PCIE5.0 with Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.




Additional information

Weight 6.5 kg
Brand

ASROCK
MPN

Z690 AQUA

Brand
