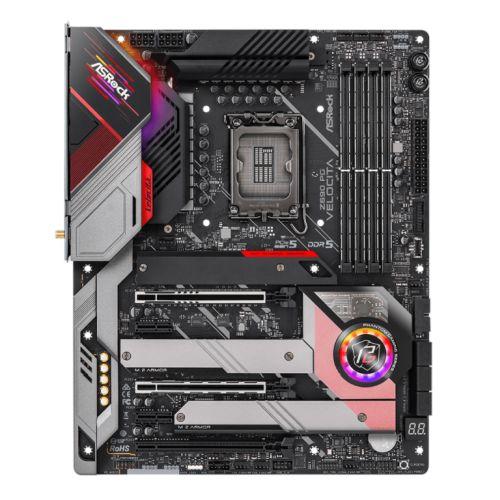

Asrock Z690 PHANTOM GAMING VELOCITA, Intel Z690, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi, 2.5GB LAN, PCIe5, RGB, 4x M.2

Asrock Z690 PHANTOM GAMING VELOCITA, Intel Z690, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi, 2.5GB LAN, PCIe5, RGB, 4x M.2

£227.99

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: ATX
  • Socket: Intel 1700
  • Chipset: Intel Z690
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR5 (Dual Channel)
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 6400+(OC)
  • Maximum Memory: 128GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types

  • Graphics Ports: 1 x HDMI
    1 x DisplayPort
  • Multi-GPU Support: Supports AMD Quad CrossFireX
  • PCI/PCI Express: 3 x PCIe 5.0 x16
    2 x PCIe 3.0 x1
  • Storage: 6 x SATA III
    1 x M.2 (2260/2280) – PCIe
    1 x M.2 (2260/2280) – SATA & PCIe
    1 x M.2 (2242/2260/2280/22110) – PCIe
    1 x Blazing M.2 (2260/2280) – PCIe Gen5x4
  • RAID: RAID 0/1/5/10
    RAID 0/1/5 for M.2 NVMe devices
  • Wireless: 802.11ax Wi-Fi 6E Module
    Supports IEEE 802.11a/b/g/n/ax
    Supports Dual-Band 2×2 160MHz w/ extended 6GHz band support
    2 antennas – 2 (Transmit) x 2 (Receive) diversity tech
    Supports Bluetooth + High speed class II
    Supports MU-MIMO
    Supports Killer LAN Software
    Supports Killer DoubleShot Pro
  • LAN: 2.5GB LAN
  • Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
  • USB Ports Supported: “1 x USB 3.2 Gen2 Type-C (at back)
    1 x USB 3.2 Gen2 Type-A (at back)
    10 x USB 3.2 Gen1 Type-A (6 at back, 4 at mid-board)
    4 x USB 2.0 (2 at back, 2 at mid-board)
    1 x Front Panel Type-C USB 3.2 Gen2x2 Header”
  • Back Panel I/O Ports: 2 x Antenna
    1 x HDMI
    1 x DisplayPort 1.4
    1 x Optical SPDIF Out
    1 x USB 3.2 Gen2 Type-A
    1 x USB 3.2 Gen2 Type-C
    6 x USB 3.2 Gen1 Type-A
    2 x USB 2.0
    2 x RJ-45 LAN
    1 x BIOS Flashback Button
    HD Audio Jacks
  • Internal I/O Connectors: 1 x SPI TPM
    1 x Power LED and Speaker
    1 x RGB LED
    3 x Addressable LED
    1 x CPU Fan
    1 x CPU/Water Pump Fan
    5 x Chassis/Water Pump Fan
    1 x VRM Fan
    1 x 24 pin ATX
    2 x 8 pin 12V
    1 x Front Audio
    1 x Thunderbolt AIC
  • .: 1 x USB 2.0
    2 x USB 3.2 Gen1
    1 x Front Panel Type-C USB 3.2 Gen2x2 Header
    1 x Clear CMOS Button
    1 x Dr. Debug with LED
    1 x Power Button with LED
    1 x Reset Button with LED
  • Accessories: “Quick Installation Guide, Support CD
    4 x SATA Data Cables
    1 x Graphics Card Holder
    1 x Wireless Dongle USB Bracket
    1 x 3010 Cooling Fan with Bracket and Screw Package
    1 x 4010 Cooling Fan Bracket and Screw Package
    1 x ASRock WiFi 2.4/5/6 GHz Antenna
    3 x Screws for M.2 Sockets
    3 x Standoffs for M.2 Sockets”
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 2.8000 kg
  • Warranty: 3 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
  • #Hide#Wi-Fi: Yes (Wi-Fi)
  • #Hide#RGB Lighting: Out of the box RGB lighting

Out of stock

SKU: Z690 PG VELOCITA Category:
ASROCK

Description



Gaming Design Reloaded



  • Supports 12th Gen Intel® Core™ Processors (LGA1700)
  • 17 Phase SPS Dr.MOS Power Design
  • Supports DDR5 6400MHz (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
  • 6 SATA3
  • 1 Blazing M.2 (PCIe Gen5 x4)
  • 2 Hyper M.2 (PCIe Gen4 x4)
  • 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 1 USB 3.2 Gen2x2 Front Type-C
  • 2 USB 3.2 Gen2 (Rear Type A+C)
  • 10 USB 3.2 Gen1 (6 Rear, 4 Front)
  • Killer E3100 2.5G LAN, Intel® Gigabit LAN
  • Killer AX1675 802.11ax (WiFi 6E) + Bluetooth
  • Lightning Gaming Ports
  • ASRock Graphics Card Holder
Optimized VRM Design
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
DDR5 Memory with Protection Circuit
The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
KiLLER Networking
The Killer Ethernet controller is designed specically for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet & WiFi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Lightning Gaming Ports
Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!
High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Deluxe Accessories
Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.
