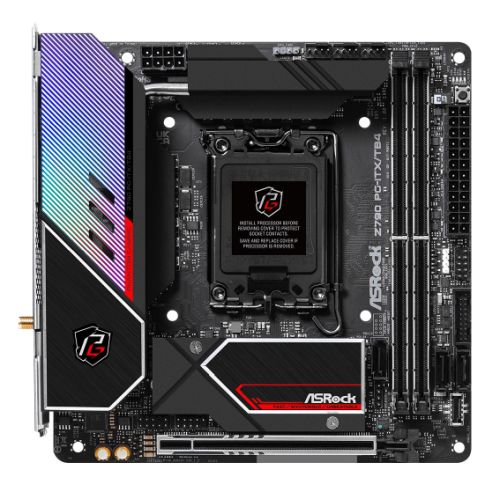

Asrock Z790 PG-ITX/TB4, Intel Z790, 1700, Mini ITX, 2 DDR5, HDMI, DP, 2 Thunderbolt, Wi-Fi 6E, 2.5G LAN, PCIe5, 3x M.2

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Mini ITX
• Socket: Intel 1700
• Chipset: Intel Z790
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 6800+(OC)
• Maximum Memory: 64GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types

• Graphics Ports: 1 x HDMI 2.1
  1 x DisplayPort 1.4
  2 x Intel Thunderbolt 4 – supports HDCP 2.3 and max. resolution up to 8K 60Hz
• PCI/PCI Express: 1 x PCIe 5.0 x16 (supports x16 mode)
• Storage: 3 x SATA III
  1 x M.2 (2280) – PCIe
  1 x M.2 (2280) – SATA & PCIe
  1 x M.2 (2280) – PCIe
• RAID: “Supports RAID 0, RAID 1 and RAID 5 for SATA storage devices
  Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices”
• Wireless: 802.11ax Wi-Fi 6E Module
  Supports IEEE 802.11a/b/g/n/ac/ax
  Supports Dual-Band 2×2 160MHz w/ ext 6GHz band support
  2 antennas – 2 (Transmit) x 2 (Receive) diversity tech
  Supports Bluetooth + High speed class II
  Supports MU-MIMO
  Supports Killer LAN Software
  Supports Killer DoubleShot Pro
• LAN: 2.5GB LAN
• Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
• USB Ports Supported: 2 x USB4 Thunderbolt 4 Type-C (at back)
  6 x USB 3.2 Gen2 Type-A (at back)
  2 x USB 3.2 Gen1 (at mid-board)
  2 x USB 2.0 (at mid-board)
  1 x Front Panel Type-C USB 3.2 Gen2x2 Header
• Back Panel I/O Ports: 2 x Antenna
  1 x HDMI
  1 x DisplayPort 1.4
  1 x Optical SPDIF Out
  2 x USB4 Thunderbolt 4 Type-C
  6 x USB 3.2 Gen2 Type-A
  1 x RJ-45 LAN
  1 x Line Out Jack
  1 x Microphone Input Jack
• Internal I/O Connectors: 1 x RGB LED
  1 x Addressable LED
  1 x CPU Fan
  1 x CPU/Water Pump Fan
  1 x Chassis Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x Front Panel Audio
  1 x USB 2.0
  1 x USB 3.2 Gen1
  1 x Front Panel Type C USB 3.2 Gen2x2
  1 x Clear CMOS Button
• Accessories: 1 x User Manual
  2 x SATA Data Cables
  1 x ASRock WiFi 2.4/5/6 GHz Antenna
  2 x Thermal Pads for M.2 SSD
  3 x Screws for M.2 Sockets
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.3000 kg
• Warranty: 3 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
