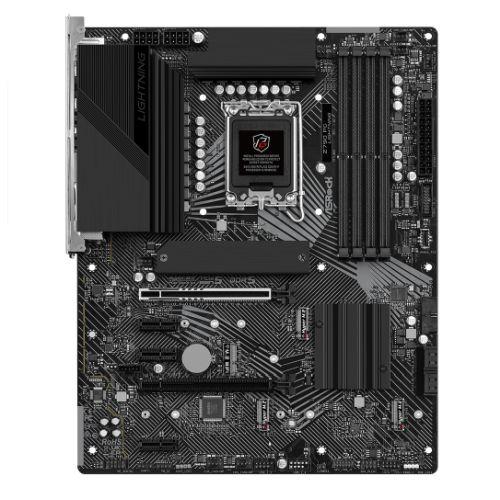

Asrock Z790 PG LIGHTNING, Intel Z790, 1700, ATX, 4 DDR5, HDMI, eDP, 2.5G LAN, PCIe5, 4x M.2

Asrock Z790 PG LIGHTNING, Intel Z790, 1700, ATX, 4 DDR5, HDMI, eDP, 2.5G LAN, PCIe5, 4x M.2

£191.99

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: ATX
  • Socket: Intel 1700
  • Chipset: Intel Z790
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR5 (Dual Channel)
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 6800+(OC)
  • Maximum Memory: 128GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types

  • Graphics Ports: 1 x HDMI
    1 x eDP 1.4
  • Multi-GPU Support: Supports AMD CrossFire
  • PCI/PCI Express: 1 x PCIe 5.0 x16 (supports x16 mode)
    1 x PCIe 4.0 x16 (supports x4 mode)
    3 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2260/2280) – PCIe
    1 x M.2 (2242/2260/2280) – PCIe
    1 x M.2 (2260/2280) – SATA & PCIe
    1 x M.2 (2260/2280) – PCIe
  • RAID: “Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices”
  • Wireless: –
  • LAN: 2.5GB LAN
  • Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • USB Ports Supported: “1 x USB 3.2 Gen2x2 Type-C (at back)
    1 x USB 3.2 Gen2 Type-A (at back)
    9 x USB 3.2 Gen1 (5 at back, 4 at mid-board)
    3 x USB 2.0 (1 at back, 2 at mid-board)
    1 x Front Panel Type-C USB 3.2 Gen1 Header”
  • Back Panel I/O Ports: 2 x Antenna Mounting Points
    1 x PS/2 Mouse/Keyboard
    1 x HDMI
    1 x USB 3.2 Gen2 Type-A
    1 x USB 3.2 Gen2x2 Type-C
    5 x USB 3.2 Gen1
    1 x USB 2.0
    1 x RJ-45 LAN
    HD Audio Jacks
  • Internal I/O Connectors: 1 x eDP Signal
    1 x SPI TPM
    1 x Power LED and Speaker
    1 x RGB LED
    3 x Addressable LED
    1 x CPU Fan
    1 x CPU/Water Pump Fan
    5 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    2 x 8 pin 12V
    1 x Front Panel Audio
    1 x Thunderbolt AIC
  • .: 1 x USB 2.0
    2 x USB 3.2 Gen1
    1 x Front Panel Type-C USB 3.2 Gen1
  • Accessories: 1 x eDP Signal
    1 x User Manual
    2 x SATA Data Cables
    5 x Screws for M.2 Sockets
    1 x Standoff for M.2 Socket
  • Package Type: Retail
  • Package Weight: 1.7000 kg
  • Warranty: 3 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN

In stock

SKU: Z790 PG LIGHTNING Category:
ASROCK

Description

Z790 PG Lightning

  • Supports 13th Gen & 12th Gen Intel® Core™ Processors
  • 14+1+1 Phase Power Design, Dr.MOS for VCore+GT
  • 4 x DDR5 DIMMs, supports up to 6800+(OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
  • Graphics Output Options: 1 HDMI, eDP
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  • 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 3 Hyper M.2 (PCIe Gen4x4), 4 SATA3
  • 1 USB 3.2 Gen2x2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Front), 9 USB 3.2 Gen1 Type-A (5 Rear, 4 Front), 3 USB 2.0 (1 Rear, 2 Front)
  • Realtek 2.5G LAN







Optimized VRM Design
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

14+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

6 Layer PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it’s able to support the latest memory modules with most extreme memory performance!
DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.



PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.

The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.



Reinforced Steel Slot [PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
 –  Extra anchor points
 –  Stronger latch
 –  Ensure signal stability
 –  Make sure heavy graphics cards to be well-installed.



Nahimic Audio

Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

Sound Tracker

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

Polychrome RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects



High Speed M.2 Solution

PCIe Gen4 x4 for SSD

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Anti-Drop Screw

Tired of dropping screws or screws missing inside chassis?

The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.



Dragon 2.5 Gb/S LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.



Rear USB 3.2 Gen2x2 Type-C

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.



Built In EDP Signal Connector
Supports ASRock 13.3” Side Panel Kit

An eDP signal connector is built with ASRock selected motherboards and supports two functions simultaneously – power and transmission of digital display signal. The connector reserves the room for upgrading with ASRock’s exclusive 13.3” Side Panel Kit.. The ideal 13.3″ Side Panel size will be perfectly matched standard form factor chassis and users can easily build a LCD display inside the PC, adding a sub-screen for monitoring PC status, or watching videos, doing streaming or working personalized tasks. This whole new concept of customization enables new possibilities for personalizing designs – doubles productivity or entertainment.



EZ Setting

Auto Driver Installer

Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Pre-Installed IO Shield

ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.



Additional information

Weight 1.7 kg
Brand

Asrock
MPN

Z790 PG LIGHTNING

Brand

ASROCK
