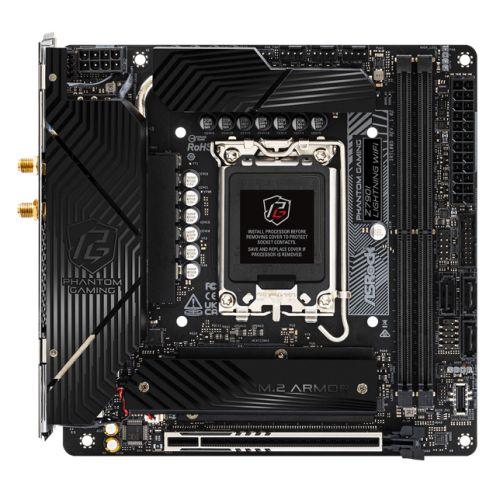

Asrock Z790I LIGHTNING WIFI, Intel Z790, 1700, Mini ITX, 2 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, 2x M.2

Asrock Z790I LIGHTNING WIFI, Intel Z790, 1700, Mini ITX, 2 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, 2x M.2

£320.99

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Mini ITX
  • Socket: Intel 1700
  • Chipset: Intel Z790
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: “DDR5 (Dual Channel)
    Supports non-ECC, un-buffered memory
    Supports Intel XMP 3.0″
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 8600+(OC)
  • Maximum Memory: 96GB
  • Graphics: Integrated Graphics*
    *Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x HDMI
    1 x DisplayPort
  • PCI/PCI Express: 1 x PCIe 5.0 x16 (supports x16 mode)
  • Storage: 3 x SATA III
    1 x M.2 (2280) – PCIe 4.0 x4
    1 x M.2 (2280) – PCIe 4.0 x4
  • RAID: “Supports RAID 0, 1 and 5 for SATA storage devices
    Supports RAID 0, 1, 5 and 10 for M.2 NVMe storage devices”
  • Wireless: 802.11axe Wi-Fi 6E Module
    Supports IEEE 802.11a/b/g/n/ac/ax/axe
    Supports Dual-Band 2×2 160MHz with extended 6GHz band support
    2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
    Supports Bluetooth 5.3 + High speed class II
    Supports MU-MIMO
  • LAN: 2.5GB LAN
  • Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • USB Ports Supported: Rear:
    1 x USB 3.2 Gen2 Type-C
    1 x USB 3.2 Gen2 Type-A
    4 x USB 3.2 Gen1 Type-A

    Front:
    1 x USB 3.2 Gen1 Type-C
    2 x USB 3.2 Gen1 Type-A
    1 x USB 2.0

  • Back Panel I/O Ports: 2 x Antenna
    1 x HDMI
    1 x DisplayPort 1.4
    1 x Optical SPDIF Out
    1 x USB 3.2 Gen2 Type-A
    1 x USB 3.2 Gen2 Type-C
    4 x USB 3.2 Gen1
    1 x RJ-45 LAN
    1 x Line Out Jack
    1 x Microphone Input Jack
  • Internal I/O Connectors: 2 x Addressable LED
    1 x Thermistor Cable
    1 x CPU/Water Pump Fan
    2 x Chassis Fan
    1 x 24 pin ATX
    1 x 8 pin 12V
    1 x Front Panel Audio
    1 x USB 2.0
    1 x USB 3.2 Gen1
    1 x Front Panel Type C USB 3.2 Gen1
  • Accessories: 2 x SATA Data Cables
    2 x ASRock WiFi 2.4/5/6 GHz Antennas
    1 x Screw for M.2 Socket
    1 x Thermistor Cable
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: To be confirmed
  • Warranty: 3 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
  • #Hide#Wi-Fi: Yes (Wi-Fi)

In stock

SKU: Z790I LIGHTNING WIFI Category:

Description

Lightning series stands as a symbol of both speed and power. The design employs linear and angular elements, evoking the imagery of lightning – a spectacle of raw energy and breathtaking speed.

  • Supports 14th, 13th & 12th Gen Intel® Core™ Processors
  • 14+1+1 Phase Power Design, 110A SPS for VCore+GT
  • 2 x DDR5 DIMMs
  • Supports Dual Channel, up to 8600+ (OC)
  • 1 PCIe 5.0 x16
  • Graphics Output Options: 1 HDMI, 1 DisplayPort
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  • 2 Hyper M.2 (PCIe Gen4 x4), 2 SATA3
  • 1 USB 3.2 Gen2 Type-C (Rear)
  • 1 USB 3.2 Gen2 Type-A (Rear)
  • 1 USB 3.2 Gen1 Type-C (Front)
  • 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
  • 2 USB 2.0 (Front)
  • Phantom Gaming 2.5G LAN
  • 802.11axe Wi-Fi 6E + Bluetooth



CPU Indicator
Tune your computer quickly with ASRock CPU Indicator. It rates your CPU by assigning points based on its performance and capabilities, helping users optimize overclocking settings for enhanced performance.

Optimized VRM Design

  • Long Lasting 20K Capacitor
  • 14+1+1 Power Phase Design
  • SPS Smart Power Stage
  • 8L & 20Z PCB Design
  • Hi-Density Power Connector
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

PCIe Gen5 with Surface Mount Technology
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Reinforced Steel Slot [PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
 – Extra anchor points
 – Stronger latch
 – Ensure signal stability
 – Make sure heavy graphics cards to be well-installed.

High Speed M.2 Solution

Hyper M.2 Gen4 x4

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Anti-Drop Screw

Tired of dropping screws or screws missing inside chassis?
The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.







PWM/DC Fan Support
ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.

Composite VRM Heatsink
It is equipped with a composite VRM heatsink combining a cooling fan, bigger aluminum sink and heat pipe for maximum heat dissipation.

Wi-Fi 6E 802.11axe
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

Phantom Gaming 2.5 Gb/s LAN
The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

Abundant USB
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.


Dual USB 3.2 Gen2 ( Type-A + Type-C )

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

Nahimic Audio
Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.


Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.


Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

Polychrome RGB
This motherboard features onboard addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

EZ Setting

Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.


Flexible Integrated I/O Shield

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.




Additional information

Brand

Asrock
MPN

Z790I LIGHTNING WIFI
