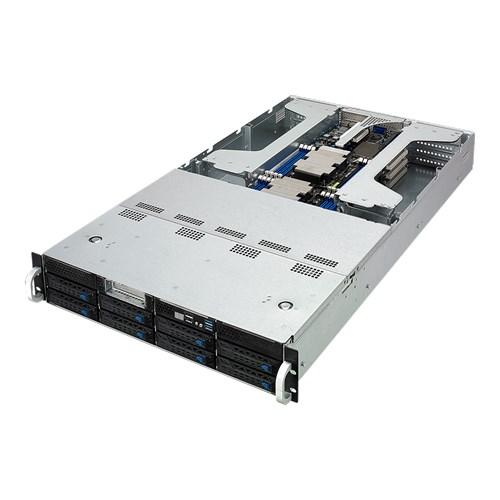

Asus (ESC4000 G4) 2U Rack-Optimised Barebone Server, Intel C621, Dual Socket 3647, 16x DDR4, 8 Bay Hot-Swap, 1+1 1600W Platinum PSU

£4,208.99

Description

Specification

  • Form Factor: 2U
  • CPU Socket: Intel 3647
  • #Hide#No. of CPU Sockets: Dual Socket
  • Chipset: Intel C621
  • CPU Support: Click here for CPU support
  • Memory: DDR4 2933/2666/2400 /2133 RDIMM
    DDR4 2933/2666/2400 /2133 LRDIMM
    DDR4 2933/2666/2400 /2133 LR-DIMM 3DS
    DDR4 Intel Optane DC Persistent Memory
  • Expansion Slots: 8 x PCIe 3.0 x16 (4 at x16 Link or 8 at x8 Link)
    1 x PCIe 3.0 x24 (support with riser card)
    1 x PCIe x8 (internal HBA/RAID card)
  • Storage: 8 x SATA3 6Gb/s ports + 1 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link /2280/2260)

    or

    6 x SATA3 6Gb/s ports + 2 x NVMe drives + 1 x M.2 connector (SATA 6Gb/s & PCI-E Gen3 x4 link /2280/2260)
    Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)

  • HDD Bays: 8 x Hot-swap 3.5″” HDD Bays
  • Networking: 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
  • Graphics: Aspeed AST2500 with 64MB VRAM
  • Front I/O Ports: 1 x 80 port
    2 x USB 3.0 ports + 2 x USB 2.0 ports
  • Rear I/O Ports: 2 x USB 3.0 port
    1 x VGA port
    1 x RJ-45 Mgmt LAN port
    2 x RJ-45 GbE LAN ports
  • Switch/LED: Front Switch/LED:
    1 x Power switch/LED
    1 x Location switch/LED
    2 x LAN LED
    1 x Message LED
    1 x HDD LED

    Rear Switch/LED:
    1 x Power switch/LED
    1 x Location LED
    1 x Message LED
    1 x HDD Access LED

  • Power Supply: 1+1 Redundant 2200W 80 PLUS Platinum Power Supply
  • OS Support: Please find the latest OS support from here
  • Management Solution: ASUS Control Center Enterprise (Trial)
    On-Board ASMB9-iKVM for KVM-over-IP
  • Regulatory Compliance: “BSMI, CE, RCM, FCC(Class A)”
  • Dimensions/Weight: 800 x 440 x 88mm
  • Environment: Operation temperature: 10? ~ 35? / Non operation temperature: -40? ~ 70?
    Non operation humidity: 20% ~ 90% ( Non condensing)
  • Package Weight: 32.8000 kg
  • Additional Features: See Overview
  • Warranty: 3 Year Advanced Replacement
  • #Hide#Memory Slots: 16 Memory Slots
  • #Hide#Maximum Memory: 2048 GB

Out of stock

EAN: 4711081025498 SKU: 90SF0071-M04120 Category:

Description



High performance 2U accelerator server with 16 DIMMs and 8 hot-swap HDD bays


  • Poweredby the latest 2nd Gen Intel Xeon Scalable processors
  • 150W CPU with 16 DIMM support
  • Flexible choice on versatile accelerators
  • Maximum flexible 8+3 expansion slots in a 2U server
  • Expandable storage for faster transfer speeds – NVMe port-to-port design and one M.2 slot with 2280-size SSD support
  • High power-efficiency with 1+1 redundant 1600W 80 plus (platinum level) power supply
  • User-friendly design for easier server maintenance – tool-less chassis design for installation and removal
  • Fully integrated remote server management – ASUS Control Center IT management software and ASMB9-iKVM module support
  • Smart thermal design for energy efficiency – reduces fan power consumption by up to 20%
  • Two hot-plug, hot-swap fans design for fully redundancy protection and thermal efficiency





Powered by the latest 2nd Gen Intel Xeon Scalable processors

ESC4000 G4 is built on the latest 2nd Gen Intel Xeon Scalable processors to deliver incredible 2U server performance, packing incredible power into minimal space. The latest Intel platform delivers a 1.33X average performance improvement in power consumption and clock speed over previous-generation processors with popular applications and benchmarks. ESC4000 G4 offers breakthrough performance with the latest Intel Optane DC persistent memory with an over 88% gain in input/output operations per second (IOPS) compared with the same configuration in SSD. Featuring the latest Intel Deep Learning Boost technology to enhance deep learning capabilities, ESC4000 G4 achieves a 3.1X performance improvement in the ResNet-50 and SSD VGG-16 models, fully demonstrating the inference capability of the new platform.





Flexible choice on versatile accelerators

ESC4000 G4 supports up to four double-deck server GPUs in a 2U form factor. Broad GPU support including NVIDIA, AMD and Intel





Maximum flexible 8+3 expansion slots in a 2U server

ESC4000 G4 offers eight full-length PCI Express 3.0 x16 (4 at x16 Link or 8 at x8 Link), one low-profile PCI Express 3.0 x24 with support of a riser card for additional one PCI Express x16 (x16 Gen3 Link) and one PCI Express x8. One PCI Express x8 for internal HBA/RAID card. Flexible expandability in a 2U form factor supports diverse storage and networking applications to meet the demands of future expansion and high scalability.





User-friendly design for easier server maintenance

ESC4000 G4 features numerous user-friendly design features that simplify server maintenance. The server's Q-code is visible from the outside of the case to make diagnosing issues easier and more convenient. A tool-less chassis design is included for easy server installation and removal, and a tool-less, hot-swappable fan provides faster and simpler maintenance.





Expandable storage for faster transfer speeds

ESC4000 G4 features full-bandwidth port-to-port OCuLink for two NVMe storage devices with 3X faster transfer speeds compared to PCIe switch IC solutions. One M.2 slot accommodates 2280-size SSDs with support for additional OS storage and PCIe 3.0 x4 bandwidth – 5.3X faster than 6 Gb/s SATA III – for faster boot speeds. ESC4000 G4 is ideal for data centers with high storage and processing demands.





Fully integrated remote server management

The latest ASMB9-iKVM module enables remote BIOS updates, standalone KVM/Java utilities, video recording and BSOD capture. With out-of-band management, ASMB9-iKVM provides around-the-clock remote monitoring and diagnostics – even if the server operating system is down or offline – through a user-friendly, web-based graphical interface that works with all major browsers. ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables easier server management with functions such as BIOS updating without restarting the system, remote monitoring of multiple systems via mobile devices, and one-click software updates and dispatching.





Smart thermal design for energy efficiency

ESC4000 G4 features a smart thermal radar design with more ambient thermal sensors for the CPU, memory, GPU, SSD, LAN card and front-panel board that provide improved temperature monitoring and enable dynamic fan speed adjustment for better power efficiency. This smart thermal design reduces fan power consumption by up to 20% and eliminates the power-sharing board for improved efficiency and lower operation costs.




For more information please click here.


Additional information

Weight 32.8 kg
Brand

Asus

MPN

90SF0071-M04120
