Asus Hyper M.2 x16 Card V2, Connect 4 x PCIe 3.0 M.2 SSDs through the PCIe x8 or x16 slot

Name: Asus Hyper M.2 x16 Card V2, Connect 4 x PCIe 3.0 M.2 SSDs through the PCIe x8 or x16 slot
SKU: 90MC06P0-M0EAY0
Availability: InStock

£49.99

Description

Specification

Type: M.2 Card
Host Interface(s): “PCI Express 3.0 x16 interface, compatible with PCI Express x8 and x16 slots, support data transfer rates up to 128 Gbps.”
Internal Interfaces: “4 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support(Support PCIE SSD only)”
Additional Features: 1 x M.2 FAN Power Switch
4 x M.2 access LEDs
RAID function Support::
Intel ROC ready for X299 & Z370.
AMD X399/X470/B450/X370/B350 Series
Dimensions: 20.2 x 9.6 x 1.3 cm
Package Type: Retail
Package Weight: 0.6600 kg
Warranty: 1 Year
#Hide#Host Interface: PCI Express

In stock

EAN: 4718017104791 SKU: 90MC06P0-M0EAY0 Category: I/O Cards/Panels

Description
Additional information

Description

New two-phase power solution with up to 14 Watt output supports the latest NVMe drives
Large heatsink reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability
Support for up to four PCIe® 3.0 M.2 drives with transfer bandwidth up to 128Gbps
Intel VROC technology and AMD Ryzen Threadripper support enables creation of bootable NVMe RAID arrays using CPU PCIe lanes

RAID on CPU

Hyper M.2 x 16 card V2 is compatible with Intel® Virtual RAID on CPU (VROC) and the AMD Ryzen™ Threadripper™ platform for NVMe RAID support. Unused CPU PCle® lanes can be assigned to storage, allowing you to create a bootable RAID array with multiple M.2 SSDs.

Design for unthrottled transfer speed

The ASUS Hyper M.2 x16 V2 card provides four M.2 slots to let you expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 14W of power per drive, as well as a large heatsink and active fan to ensure drives stay cool for optimum performance.

One card, 4X the bandwidth

Hyper M.2 x16 is designed specifically for Intel® Virtual RAID on CPU (VROC) and the AMD Ryzen™ Threadripper™ platform for NVMe RAID support and features four M.2 slots, providing up to 128 Gbps of bandwidth per card.

Additional information

Weight	0.66 kg
Brand	Asus
MPN	90MC06P0-M0EAY0

Privacy Overview

This website uses cookies to improve your experience while you navigate through the website. Out of these, the cookies that are categorized as necessary are stored on your browser as they are essential for the working of basic functionalities of the website. We also use third-party cookies that help us analyze and understand how you use this website. These cookies will be stored in your browser only with your consent. You also have the option to opt-out of these cookies. But opting out of some of these cookies may affect your browsing experience.

Necessary

Always Enabled

Necessary cookies are absolutely essential for the website to function properly. These cookies ensure basic functionalities and security features of the website, anonymously.

Cookie	Duration	Description
cookielawinfo-checkbox-advertisement	1 year	Set by the GDPR Cookie Consent plugin, this cookie is used to record the user consent for the cookies in the "Advertisement" category .
cookielawinfo-checkbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
CookieLawInfoConsent	1 year	CookieYes sets this cookie to store the user consent.
enforce_policy	1 year	Paypal sets this cookie to make secure transactions.
KHcl0EuY7AKSMgfvHl7J5E7hPtK	1 year 1 month 4 days	PayPal sets this cookie to run the purchase facilities offered on the website through PayPal.
rc::a	never	This cookie is set by the Google recaptcha service to identify bots to protect the website against malicious spam attacks.
rc::c	session	This cookie is set by the Google recaptcha service to identify bots to protect the website against malicious spam attacks.
sc_f	1 year 1 month 4 days	PayPal sets this cookie when a website is in association with PayPal's payment function.
ts	1 year 1 month 4 days	PayPal sets this cookie to enable secure transactions through PayPal.
ts_c	1 year 1 month 4 days	PayPal sets this cookie to make safe payments through PayPal.
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.

Functional

Functional cookies help to perform certain functionalities like sharing the content of the website on social media platforms, collect feedbacks, and other third-party features.

Cookie	Duration	Description
LANG	9 hours	Linkedin set this cookie to set user's preferred language.
nsid	session	This cookie is set by the provider PayPal to enable the PayPal payment service in the website.
tsrce	3 days	PayPal sets this cookie to enable the PayPal payment service in the website.
x-pp-s	session	PayPal sets this cookie to process payments on the site.

Performance

Performance cookies are used to understand and analyze the key performance indexes of the website which helps in delivering a better user experience for the visitors.

Cookie	Duration	Description
l7_az	30 minutes	This cookie is necessary for the PayPal login-function on the website.

Analytics

Analytical cookies are used to understand how visitors interact with the website. These cookies help provide information on metrics the number of visitors, bounce rate, traffic source, etc.

Cookie	Duration	Description
_ga	1 year 1 month 4 days	The _ga cookie, installed by Google Analytics, calculates visitor, session and campaign data and also keeps track of site usage for the site's analytics report. The cookie stores information anonymously and assigns a randomly generated number to recognize unique visitors.
_ga_*	1 year 1 month 4 days	Google Analytics sets this cookie to store and count page views.
_gat_gtag_UA_*	1 minute	Google Analytics sets this cookie to store a unique user ID.
_gid	1 day	Installed by Google Analytics, _gid cookie stores information on how visitors use a website, while also creating an analytics report of the website's performance. Some of the data that are collected include the number of visitors, their source, and the pages they visit anonymously.
sbjs_current	session	Sourcebuster sets this cookie to identify the source of a visit and stores user action information in cookies. This analytical and behavioural cookie is used to enhance the visitor experience on the website.
sbjs_current_add	session	Sourcebuster sets this cookie to identify the source of a visit and stores user action information in cookies. This analytical and behavioural cookie is used to enhance the visitor experience on the website.
sbjs_first	session	Sourcebuster sets this cookie to identify the source of a visit and stores user action information in cookies. This analytical and behavioural cookie is used to enhance the visitor experience on the website.
sbjs_first_add	session	Sourcebuster sets this cookie to identify the source of a visit and stores user action information in cookies. This analytical and behavioural cookie is used to enhance the visitor experience on the website.
sbjs_migrations	session	Sourcebuster sets this cookie to identify the source of a visit and stores user action information in cookies. This analytical and behavioural cookie is used to enhance the visitor experience on the website.
sbjs_session	1 hour	Sourcebuster sets this cookie to identify the source of a visit and stores user action information in cookies. This analytical and behavioural cookie is used to enhance the visitor experience on the website.
sbjs_udata	session	Sourcebuster sets this cookie to identify the source of a visit and stores user action information in cookies. This analytical and behavioural cookie is used to enhance the visitor experience on the website.

Advertisement cookies are used to provide visitors with relevant ads and marketing campaigns. These cookies track visitors across websites and collect information to provide customized ads.

Cookie	Duration	Description
c	20 years	This cookie is set by Rubicon Project to control synchronization of user identification and exchange of user data between various ad services.

Others

Asus Hyper M.2 x16 Card V2, Connect 4 x PCIe 3.0 M.2 SSDs through the PCIe x8 or x16 slot

Description

Additional information

Related products

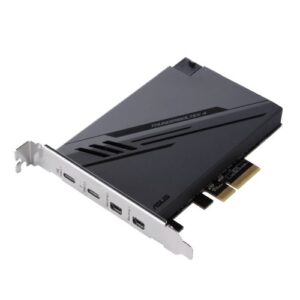

Asus ThunderboltEX 4 Card, PCI Express, 2 x Thunderbolt 4 (USB-C), 2 x Mini DisplayPort In, TBT Header, USB 2.0 Header
