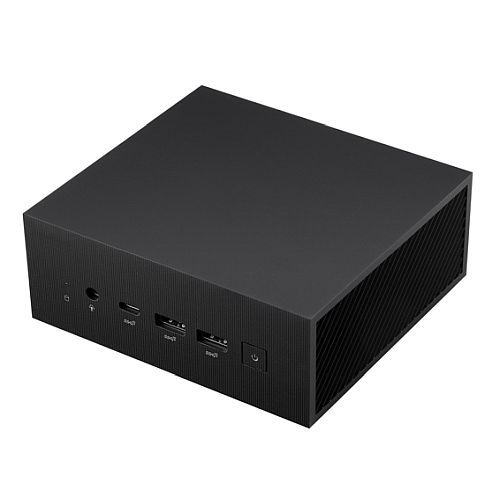

Asus Mini PC PN64 Barebone (PN64-B-S5121MD), i5-12500H, DDR5 SO-DIMM, 2.5″/M.2, HDMI, DP, USB-C, 2.5G LAN, Wi-Fi 6E, VESA – No RAM, Storage or O/S

Asus Mini PC PN64 Barebone (PN64-B-S5121MD), i5-12500H, DDR5 SO-DIMM, 2.5″/M.2, HDMI, DP, USB-C, 2.5G LAN, Wi-Fi 6E, VESA – No RAM, Storage or O/S

£471.99

Description

Specification

  • #Hide#Fully Built / Barebone: Barebone
  • Tower / Small Form Factor: Small Form Factor
  • Chassis: Asus Mini PC PN64
  • Processor: Intel Core i5-12500H (3.3GHz)
  • Processor Details: 12-Core
    4.5GHz turbo
  • Chipset: Integrated
  • Graphics: Intel Iris Xe Graphics
  • #Hide#Processor: Intel i5
  • Memory: None
  • Memory Details: 2 x DDR5 SO-DIMM slots
    Max 32GB (2 x 16GB)
    Up to 4800 MT/s
  • Hard Drive: None
  • SSD Drive: None
  • Optical Drive: None
  • Supported Drives: 1 x M.2 2280 PCIe Gen4x4
    1 x SATA 6Gb/s for 2.5″” HDD (max 7mm high)
  • Operating System: No O/S
  • Front I/O: 1 x USB 3.2 Gen2 Type-C
    2 x USB 3.2 Gen2
    1 x Audio Jack (Line out/ Mic in/ Headphone out)
    1 x Kensington Lock
  • Back I/O: “1 x USB 3.2 Gen2
    1 x USB 3.2 Gen2 Type-C (support DP1.4, PD)
    2 x HDMI
    1 x Display Port 1.4
    1 x Intel (RJ45) 2.5G LAN
    1 x DC-in
    1 x Padlock ring”
  • LAN: “2.5G LAN, Intel I225V”
  • Wireless: Wi-Fi 6E
  • Bluetooth: Bluetooth 5.2
  • Power Unit: “19Vdc, 6.32A, 120W Power Adapter “
  • Keyboard and Mouse: No
  • Dimensions: (WxDxH) 120 x 130 x 58 mm
    0.9L
    0.75 kg
  • Additional Features: See Overview
  • Accessories: AC Adapter
    Driver DVD
    Power Cord
    Screw Pack
    User Manual
    Warranty Card
    VESA Mount
  • Package Weight: 1.8500 kg
  • Package Type: Retail
  • Warranty: 3 Years
  • #Hide#Memory: DDR5

In stock

EAN: 4711387176955 SKU: 90MR00U2-M003T0 Category:

Description

Ultra-compact mini barebone PC with 12th Gen Intel® Core™ processors and Intel Graphics, DDR5 RAM (not included), PCIe® Gen 4 x4 M.2 NVMe® SSD, Intel® 2.5 Gb LAN, WiFi 6E


  • Powered by the latest Intel 12th Generation Core™ processor
  • Whole new hybrid architecture design with powerful performance-cores and efficient-cores for improved multitasking, streaming experience and intelligent workload optimization.
  • DDR5-4800 memory support allows your computer to transfer data faster than DDR4
  • Support one PCIe Gen4x4 SSD to deliver greater performance and lower latency
  • 4 display located in the rear I/O panel including dual HDMI2.0
  • Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
  • Support DisplayPort 1.4 & Power Delivery input through rear USB Type-C port
  • Onboard 2.5GbE LAN delivering faster Ethernet connectivity
  • Advanced fan control to achieve better heat dissipation
  • 24/7 reliability — Extensively tested to ensure long-term dependability






New Processor Architecture Design

ASUS ExpertCenter PN64 is powered by the latest Intel® 12th Gen Intel® Core™ CPU featuring a new hybrid processor design. It includes performance-cores (P-cores) dedicated to processing heavy loads and prioritized tasks, as well as efficient-cores (E-cores) catering to background tasks such as web browsing and PowerPoint presentations. This new core design enables PN64 to process multiple tasks simultaneously in the most efficient way possible.



Superior Computing Performance

ASUS ExpertCenter PN64 is powered by the latest 12th Generation Intel® Processors which deliver superior performance for you to save you time and increase your ability to do the things you want. Comparing to previous generation, PN64 has 23% increase on overall system performance, and over 2 times increase for daily multitask computing. With such great improvement, it helps you process intensive business operations more efficiently.

Faster and better DDR5 RAM

ASUS ExpertCenter PN64 is powered by12th Gen Intel® Core™ CPU supporting the next gen memory – DDR5. Supporting DDR5 allows you to transfer data faster than DDR4. Comparing to DDR4, DDR5 memory modules bring a higher level of bandwidth and speed, it improves 34% faster on memory read and 37% on write. DDR5 helps you to drive greater performance and productivity.

Ultrafast PCIe® 4.0 SSD

ASUS ExpertCenter PN64 supports one PCIe® Gen 4 X4 SSD to deliver low-latency data transfers at speeds of up to 8 GB/s, that’s twice the data transfer speeds of PCIe 3.0.

Superfast 2.5 Gbps Ethernet

ASUS ExpertCenter PN64 features next-generation 2.5GBASE-T technology for superfast 2.5 Gbps networking speeds, enabling it to make light work of the most data-intensive tasks.

Modern, Space-saving Design

Compact and stylish, ASUS ExpertCenter PN64 has a contemporary look that suits any home or office

Ultra-realistic 8K Visuals

ASUS ExpertCenter PN64 delivers breathtaking 8K visuals at 30 frames per second via the standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that’s 4X greater than 4K, or 16X that of traditional FHD output.

USB Power Delivery Input

ASUS ExpertCenter PN64 can draw power from any USB Power Delivery-enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace.

4K Resolution & Quad Display Support

ASUS ExpertCenter PN64 can support up to four 4K displays via HDMI® and DisplayPort™, without any limitation on the combination used.

Padlock Ring for Security

The chassis of ASUS ExpertCenter PN64 can be secured with a standard padlock to prevent access to internal components.

New Lockable VESA Mount Design

Lockable design for better security solution. Whole new lockable design avoids the device from stolen, and device can be mounted on the VESA plate with solidity.

Military Standard Tests

To ensure maximum reliability and durability, ASUS MiniPC PN64 has been tested through military standard 810H.

Two-Way AI Noise Cancelation
Filters unwanted noise from the microphone and incoming audio for crystal-clear voice communication.



System Diagnosis
  • Hardware diagnostic
  • Scenario check-up – Provides brief descriptions to enable users to identify different situations encountered and select the ideal diagnostic checkup required.



Smart Fan Control
Performance & Quiet modes
Gives users the flexibility to use maximum fan speed during heavy loads or switch to a lower speed for silent operation.


Other Functions

  • WiFi SmartConnect – Optimizes the wireless connection
  • TaskFirst – Allocate networking bandwidth to specific tasks.
  • Link to MyASUS – Allows users to connect the computer to a mobile device.



Additional information

Weight 1.85 kg
Brand

Asus
MPN

90MR00U2-M003T0
