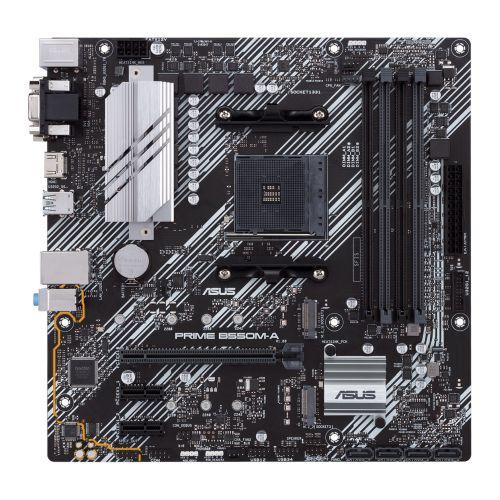

Asus PRIME B550M-A/CSM – Corporate Stable Model, AMD B550, AM4, Micro ATX, 4 DDR4, VGA, DVI, HDMI, PCIe4, 2x M.2

£168.99

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: AMD AM4
  • Chipset: AMD B550
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 4866(O.C)
  • Maximum Memory: 128GB
  • Graphics: Integrated Graphics Processor*

    Graphics specifications may vary between CPU types

  • Graphics Ports: 1 x VGA
    1 x DVI-D
    1 x HDMI
  • PCI/PCI Express: 1 x PCIe 4.0 x16 (x16 mode)
    2 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280/22110) – SATA & PCIe
    1 x M.2 (2242/2260/2280/22110) – SATA & PCIe
  • RAID: “RAID 0, 1, 10”
  • Wireless:
  • LAN: GB LAN
  • Audio: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
  • USB Ports Supported: “2 x USB 3.2 Gen2 Type-A (at back)
    6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)
    4 x USB 2.0 (at mid-board)”
  • Back Panel I/O Ports: 1 x PS/2 keyboard/mouse combo
    1 x DVI-D
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45)
    2 x USB 3.2 Gen2 Type-A
    4 x USB 3.2 Gen
    3 x Audio jacks
  • Internal I/O Connectors: 1 x CPU Fan
    1 x CPU OPT Fan
    2 x Chassis Fan
    2 x Aura RGB Strip
    1 x Addressable Gen2
    1 x USB 3.2 Gen1
    2 x USB 2.0
    2 x M.2 Socket 3 with M Key
    1 x SPI TPM
    4 x SATA 6Gb/s
    1 x S/PDIF out
    1 x 24-pin EATX
  • .: 1 x 8-pin EATX 12V
    1 x Front panel audio
    1 x Clear CMOS jumper
    1 x System panel
    1 x COM port
    1 x Speaker
  • Accessories: 1 x ACC Express Activation Key Card
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x Supporting DVD
    User manual
    1 x M.2 SSD screw package(s)
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 1.8000 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN

Out of stock

SKU: 90MB14I0-M0EAYC Category:

Description

AMD B550 (Ryzen AM4) micro ATX motherboard with dual M.2, PCIe 4.0, 1 Gb Ethernet, HDMI/D-Sub/DVI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB headers support


  • AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+
  • Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A
  • Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware




Prime

ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.




ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express – server-grade IT management software.

ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.


Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.

Cool to the Core
Prime B550 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Build on a Solid Foundation
Prime B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Little Things Make a Big Difference
Prime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.





Additional information

Weight 1.8 kg
Brand

Asus

MPN

90MB14I0-M0EAYC
