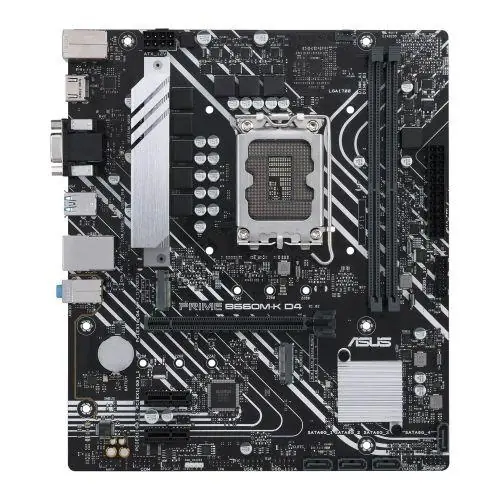

Asus PRIME B660M-K D4, Intel B660, 1700, Micro ATX, 2 DDR4, VGA, HDMI, PCIe4, 2x M.2

Asus PRIME B660M-K D4, Intel B660, 1700, Micro ATX, 2 DDR4, VGA, HDMI, PCIe4, 2x M.2

£157.99

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1700
  • Chipset: Intel B660
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 5333(OC)
  • Maximum Memory: 64GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types

  • Graphics Ports: 1 x VGA
    1 x HDMI
  • PCI/PCI Express: 1 x PCIe 4.0/3.0 x16
    2 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280) – PCIe
    1 x M.2 (2242/2260/2280) – PCIe
  • RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
  • Wireless: –
  • LAN: GB LAN
  • Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
  • USB Ports Supported: “6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)
    6 x USB 2.0 (2 at back, 4 at mid-board)”
  • Back Panel I/O Ports: 4 x USB 3.2 Gen1 Type-A
    2 x USB 2.0 Type-A
    1 x D-Sub
    1 x HDMI
    1 x Realtek 1Gb Ethernet
    3 x Audio jacks
    1 x PS/2 Keyboard/Mouse combo
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    1 x 4-pin Chassis Fan
    1 x 24-pin Main
    1 x 8-pin +12V
    2 x M.2 (Key M)
    4 x SATA 6Gb/s
    1 x USB 3.2 Gen1
    2 x USB 2.0
    1 x RGB
    1 x Clear CMOS
    1 x COM Port
    1 x Front Panel Audio
  • .: 1 x S/PDIF Out
    1 x Speaker
    1 x SPI TPM (14-1pin)
    1 x 10-1 pin System Panel
  • Accessories: 2 x SATA 6Gb/s cables
    1 x I/O Shield
    2 x M.2 anchors
    1 x Support DVD
    1 x User manual
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 0.9300 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN

In stock

SKU: 90MB1950-M1EAY0 Category:
ASUS

Description

Intel® B660 (LGA 1700) mATX motherboard with PCIe® 4.0, two M.2 slots, DDR4, HDMI®, D-Sub, Realtek 1Gb Ethernet, front USB 3.2 Gen 1, ASUS Lighting Control

  • Intel® LGA 1700 socket: Ready for 12th gen Intel® processors
  • Enhanced power solution: 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
  • Comprehensive cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert
  • Ultrafast connectivity: PCIe® 4.0, two M.2 slots and front USB 3.2 Gen 1
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B660M-K D4 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.



Flexibility

Comprehensive controls form the foundation of the ASUS Prime series. The Prime B660 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.



UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.



Cooling

Prime B660 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.



Performance
Prime B660 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel processors. ASUS B660 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Click here for more information.

Additional information

Weight 0.93 kg
Brand

Asus
MPN

90MB1950-M1EAY0

Brand

ASUS
