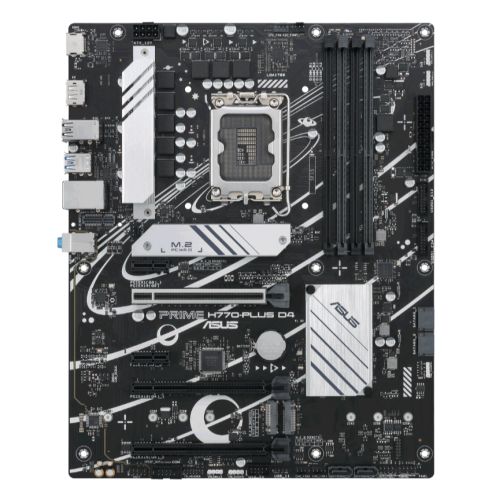

Asus PRIME H770-PLUS D4, Intel H770, 1700, ATX, 4 DDR4, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1700
• Chipset: Intel H770
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 5066(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types

• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 5.0 x16
  2 x PCIe 4.0 x16 (support x4 mode)
  2 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) – PCIe
  1 x M.2 (2242/2260/2280/22110) – PCIe
  1 x M.2 (2242/2260/2280) – SATA & PCIe
• RAID: “Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10”
• Wireless: –
• LAN: 2.5GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: “1 x USB 3.2 Gen2 Type-C (at back)
  2 x USB 3.2 Gen2 Type-A (at back)
  7 x USB 3.2 Gen1 (3 at back, 4 at mid-board)
  5 x USB 2.0 (2 at back, 3 at mid-board)”
• Back Panel I/O Ports: “3 x USB 3.2 Gen2 (2 Type-A, 1 Type-C)
  3 x USB 3.2 Gen1 Type-A
  2 x USB 2.0
  1 x DisplayPort
  1 x HDMI
  1 x Vertical M.2 (Key E)
  1 x Realtek 2.5Gb Ethernet
  3 x Audio jacks”
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin AIO Pump
  3 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  3 x M.2 (Key M)
  4 x SATA 6Gb/s
  2 x USB 3.2 Gen1
  2 x USB 2.0
  3 x Addressable Gen2
  2 x Aura RGB
  1 x Clear CMOS
• .: 1 x COM Port
  1 x Front Panel Audio
  1 x S/PDIF Out
  1 x SPI TPM (14-1pin)
  1 x 20-3 pin System Panel
  1 x Thunderbolt (USB4)
• Accessories: 2 x SATA 6Gb/s cables
  1 x I/O Shield
  1 x M.2 Rubber Package
  2 x Screw Packages for M.2 SSD
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.3000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
